Panduit FRSPJ2X2YL
Panduit FRSPJ2X2YL Spill Over Junction Cover, For Use With FiberRunner 4 x 4 in, 6 x 4 in, 12 x 4 in or 24 x 4 in Routing System Fitting, 8.78 in L x 4.9 in W x 5.61 in H, ABS, Yellow
Panduit FRSPJ2X2YL
Panduit FRSPJ2X2YL Spill Over Junction Cover, For Use With FiberRunner 4 x 4 in, 6 x 4 in, 12 x 4 in or 24 x 4 in Routing System Fitting, 8.78 in L x 4.9 in W x 5.61 in H, ABS, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Spill Over Junction Cover, For Use With: FiberRunner 4 x 4 in, 6 x 4 in, 12 x 4 in or 24 x 4 in Routing System Fitting, 8.78 in L x 4.9 in W x 5.61 in H Size, 2 in Bend Radius, ABS, Yellow
Attributes
Documents
Applications
Warranty
Features
Included
Specifications
Attributes
Bend Radius2 in
ColorYellow
Country of OriginUS
ManufacturerPanduit
MaterialABS
Size8.78 in L x 4.9 in W x 5.61 in H
Suitable For Use WithFiberRunner 4 x 4 in, 6 x 4 in, 12 x 4 in or 24 x 4 in Routing System Fitting
TypeCat 6 UTP Plenum
Documents
Applications
Segregate, Route and Protect Fiber Optic and High Performance Copper Cabling, Data Center Applications where Cable is Routed from Distribution Areas to Equipment, Racks and Floor Applications
Warranty
1 year Limited
Features
- Assembles onto FiberRunner 4 x 4 in, 6 x 4 in, 12 x 4 in or 24 x 4 in channel, spilling over the side into a 2 x 2 in vertical exit
- Requires coupler to attach 2 x 2 FiberRunner and fittings to the vertical exit
- Mounts directly to existing installation with no alteration required
- Mounting hardware provided for secure attachment
- It is suited for data center applications where cable is routed from distribution areas to equipment cabinets or racks
Included

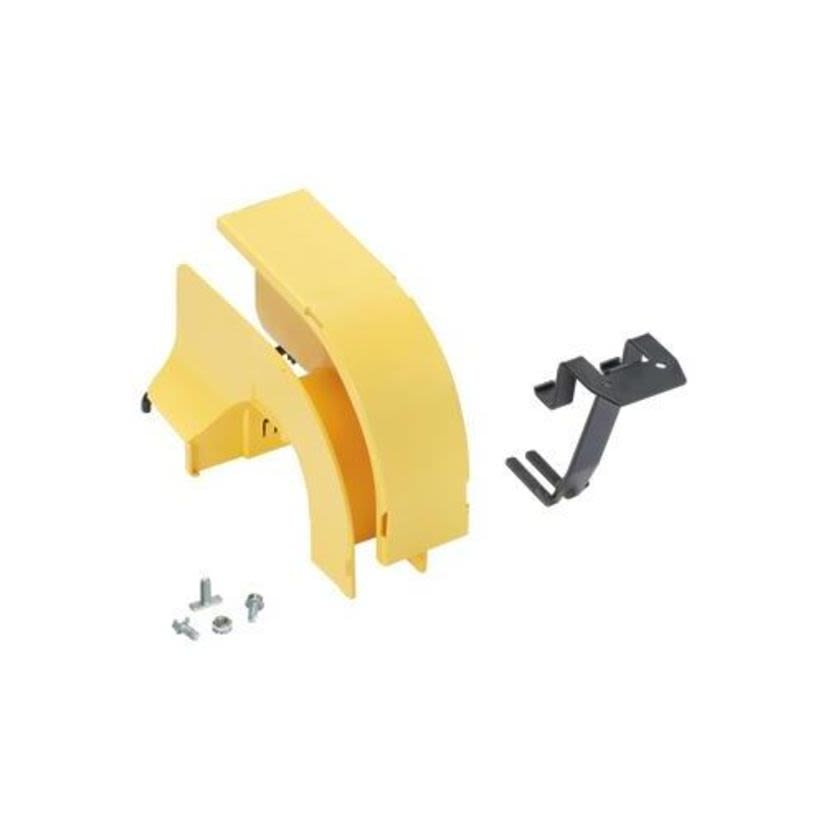

(1) Base Assembly, (1) Throat Cover, (1) Support Bracket, (1) 1/4-20 T-Bolt, (1) 1/4-20 Hex Keps Locknut and (2) 1/4-14 x 1/2 Hex Washer Head Tapping Screws
Specifications
- ARRA Compliant
- Buy American Act Compliant
- RoHS Compliant
- UL 2024A
