NSi PTS2

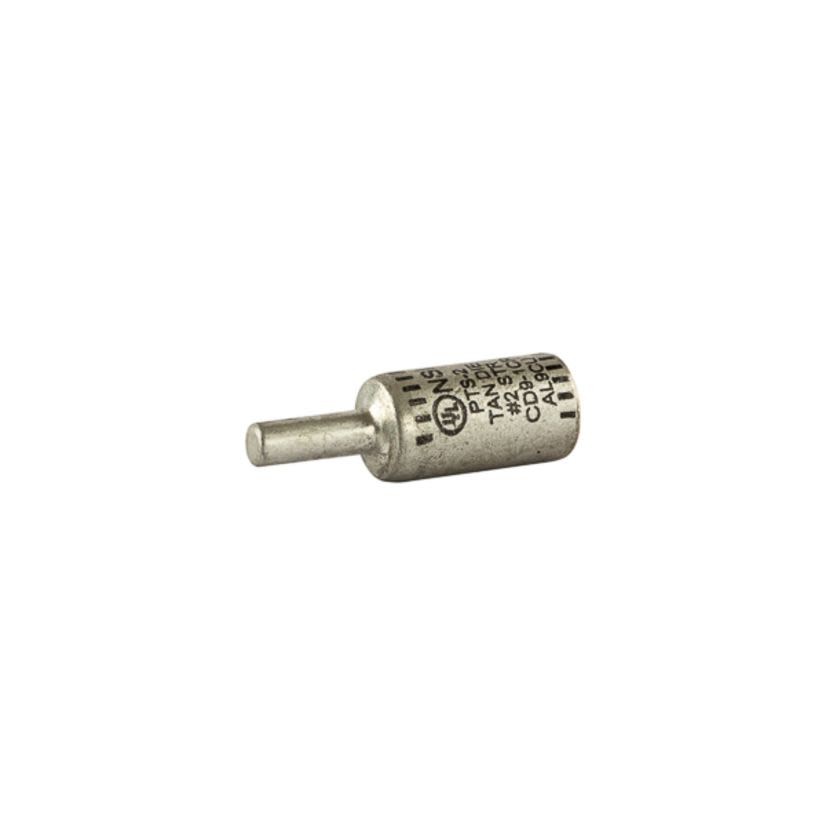

NSi PTS2 Dual Rated Solid Pin Terminal, 2 AWG Conductor, 0.24 in Dia x 0.68 in L Pin, Aluminum
NSi PTS2
NSi PTS2 Dual Rated Solid Pin Terminal, 2 AWG Conductor, 0.24 in Dia x 0.68 in L Pin, AluminumNon-stock product. Available to order - lead time may vary.
BrandNSi
MFG #PTS2
Werner Part #319582
UPC662381033420
Non-stock product. Available to order - lead time may vary.
BrandNSi
MFG #PTS2
Werner Part #319582
UPC662381033420
Product Description
NSI Solid Pin Terminal, Dual Rated, Series: PTS, 2 AWG Conductor, Tan Color Code, 0.24 in Pin Diameter, 0.68 in Pin Length, 1.16 in Barrel Length, 600 VAC, Specifications: 90 deg C Temperature, 1 Pole, 1 Conductor, 0.299 in ID x 0.598 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish, Aluminum, 1.85 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
Barrel Length1.16 in
Conductor size2 AWG
Country of OriginIndia
Dimensions1.85 in L
ManufacturerNSi Industries
MaterialAluminum
Pin Length0.68 in
SeriesPTS
TypeDual Rated
Type / StyleDual Rated
Voltage Rating600 VAC
Features
Plastisol cover insulationN1240 crimp toolDesigned for termination of both aluminum and copper conductorsSolid pin is tin plated to provide low contact resistance and oxidation protectionCover is provided for quick installationPre-filled with oxide inhibitor and capped with color coded cap indicating color of die to use4 to 2 AWG standard pin size
Specifications
90 deg C Temperature, 1 Pole, 1 Conductor, 0.299 in ID x 0.598 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish
