NSi PTO-600

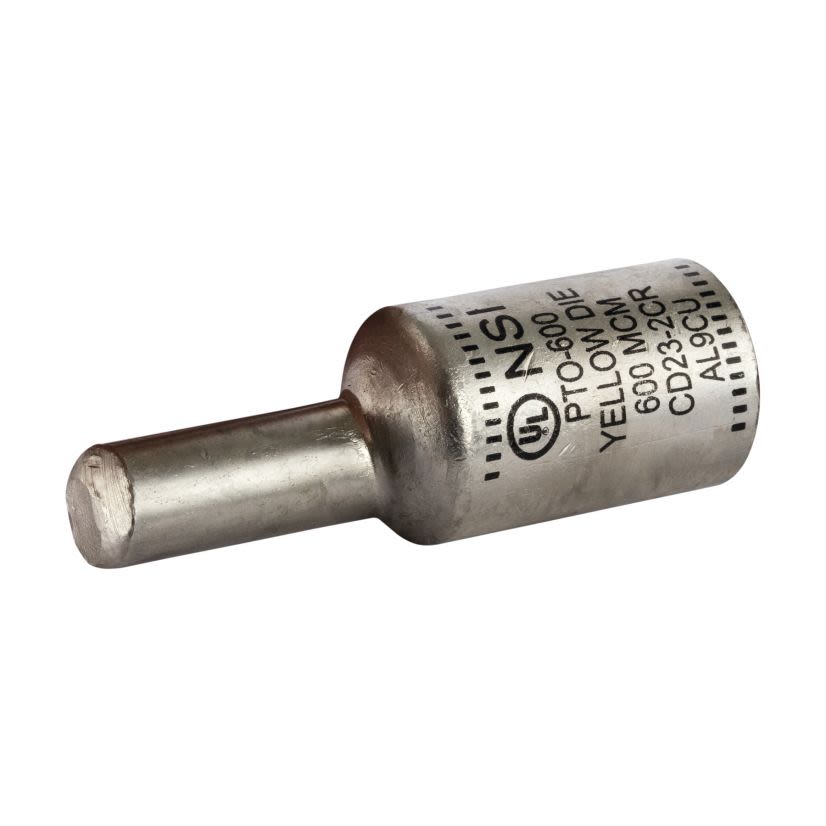

NSi PTO-600 Dual Rated Offset Pin Terminal, 600 kcmil Conductor, 0.72 in Dia x 1.72 in L Pin, Aluminum
NSi PTO-600
NSi PTO-600 Dual Rated Offset Pin Terminal, 600 kcmil Conductor, 0.72 in Dia x 1.72 in L Pin, AluminumNon-stock product. Available to order - lead time may vary.
BrandNSi
MFG #PTO-600
Werner Part #341862
UPC662381033284
Non-stock product. Available to order - lead time may vary.
BrandNSi
MFG #PTO-600
Werner Part #341862
UPC662381033284
Product Description
NSI Offset Pin Terminal, Dual Rated, Series: PTO, 600 kcmil Conductor, Yellow Color Code, 0.72 in Pin Diameter, 1.72 in Pin Length, 2.27 in Barrel Length, 600 VAC, Specifications: 90 deg C Temperature, 1 Pole, 1 Conductor, 0.821 in ID x 1.46 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish, Aluminum, 4 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
Barrel Length2.27 in
Conductor size600 kcmil
Country of OriginIndia
Dimensions4 in L
ManufacturerNSi Industries
MaterialAluminum
Pin Length1.72 in
SeriesPTO
TypeDual Rated
Type / StyleDual Rated
Voltage Rating600 VAC
Documents
Features
Plastisol cover insulationN1240 crimp toolDesigned for termination of both aluminum and copper conductorsPin is offset for use in tight spaces and for ease of installation in side-by-side terminationsMade of aluminum and is tin plated and pre-filled with oxide inhibitorCover is provided for quick installationGreat for paralleling cable400 to 600 kcmil standard pin size
Specifications
90 deg C Temperature, 1 Pole, 1 Conductor, 0.821 in ID x 1.46 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish
