Metalux HLB6S099FS1EMWR

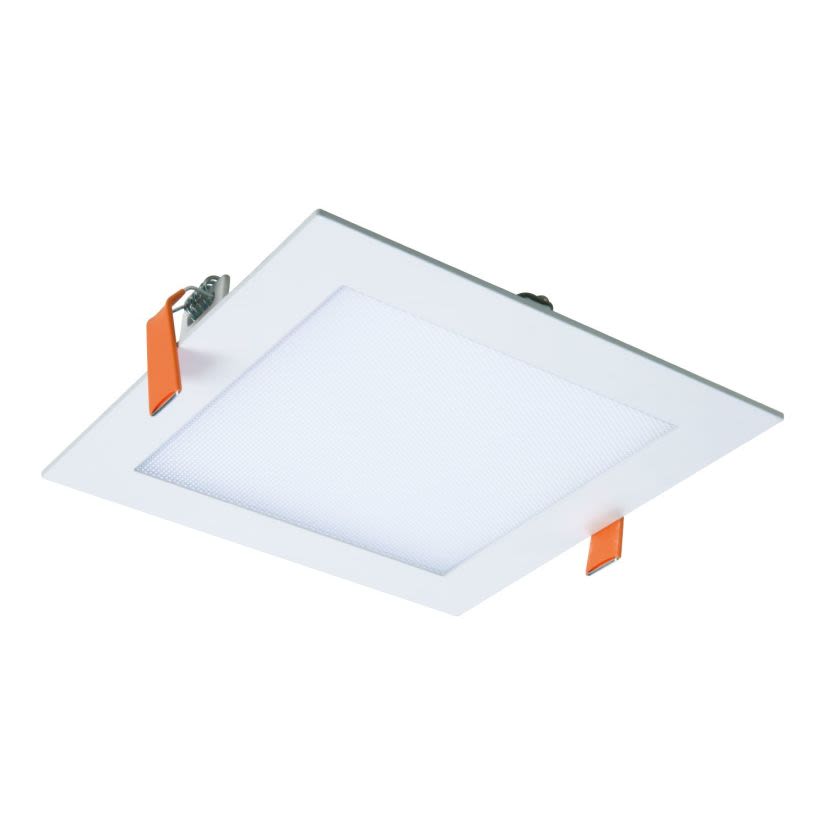

Halo HLB6S099FS1EMWR HLB6S Square Aperture Integrated Round Ultra Thin Downlight, LED Lamp, 12 W Fixture, 6.7 in Ceiling Opening, 120 V, Die Cast Aluminum Housing
🚚 Ships Quickly from Cooper
Metalux HLB6S099FS1EMWR
Halo HLB6S099FS1EMWR HLB6S Square Aperture Integrated Round Ultra Thin Downlight, LED Lamp, 12 W Fixture, 6.7 in Ceiling Opening, 120 V, Die Cast Aluminum HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Halo, HLB6S099FS1EMWR, Aperture Integrated Round Ultra Thin Downlight, Square, Series: HLB6S, 120 V, 12 W Fixture, 0.1 A, LED Lamp, 12 W Lamp, 1 Lamps, 69.6 to 73.6 Lumens/W Light Output, 6.7 in Ceiling Opening, 50000 hr Average Life, Bright/Soft/Warm White Light, 5000 K Color Temperature, 90 CRI, Dimmable Ballast, Acrylic Lens, 900 Lumens, IP44 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, 6 in L x 6 in W x 1-1/4 in H Dimensions
Attributes
Documents
Included
Applications
Features
Specifications
Warranty
Attributes
Average Life50000 hr
Ballast TypeDimmable
Ceiling Opening6.7 in
Color Rendering Index (CRI)90
Color Temperature5000 K
Country of OriginCN
Dimensions6 in L x 6 in W x 1-1/4 in H
Enclosure TypeIP44
Fixture Wattage12 W
Housing MaterialDie Cast Aluminum
Lamp TypeLED
Lamp Wattage12 W
Lens TypeAcrylic
Light ColorBright/Soft/Warm White
Lumen900 Lumens
ManufacturerCooper Lighting Solutions
Mounting TypeSurface Mount
Number of Lamps1
SeriesHLB6S
TypeSquare
Voltage Rating120 V
Wattage12 W
Documents
Included
Remote Driver/Junction Box
Applications
Lighting Applications
Features
- Ultra low profile surface luminaire with wide distribution
- Ceiling or wall mounting in compatible junction boxes
- Dimmable with 120 VAC dimmers
- Direct mount does not require recessed housing or junction box
- Wet location listed for showers and protected ceilings
- Damp location listed for indoor ceiling or wall mounting
- 0.133 A at 120 VAC, 0.055 A at 277 VAC amperage rating
- Ultra-thin round lens downlight with remote driver/junction box
- Install into drywall/suspended ceilings (no J-box or housing required)
- Install from below the ceiling in as little as a 1-1/2 in plenum height
- For insulated ceiling (IC) rated and non-IC rated applications
- 120 V, phase dimming down to 5%
Specifications
- AIR-TITE Certified
- ASTM E283-04
- California Title 24 Compliant
- cULus Listed for Wet Locations
- ECCN EAR99NLR
- EMI/RFI per FCC 47 CFR Part 15
- ENERGY STAR Certified
- IES LM-79-08/LM-80-08 and TM-21-11
- NEC 410.16
- RoHS Compliant
- UL File No E349750
Warranty
5 years Limited
