Metalux 4WNLED-LD4-40SL-F-UNV-L840-CD1-U

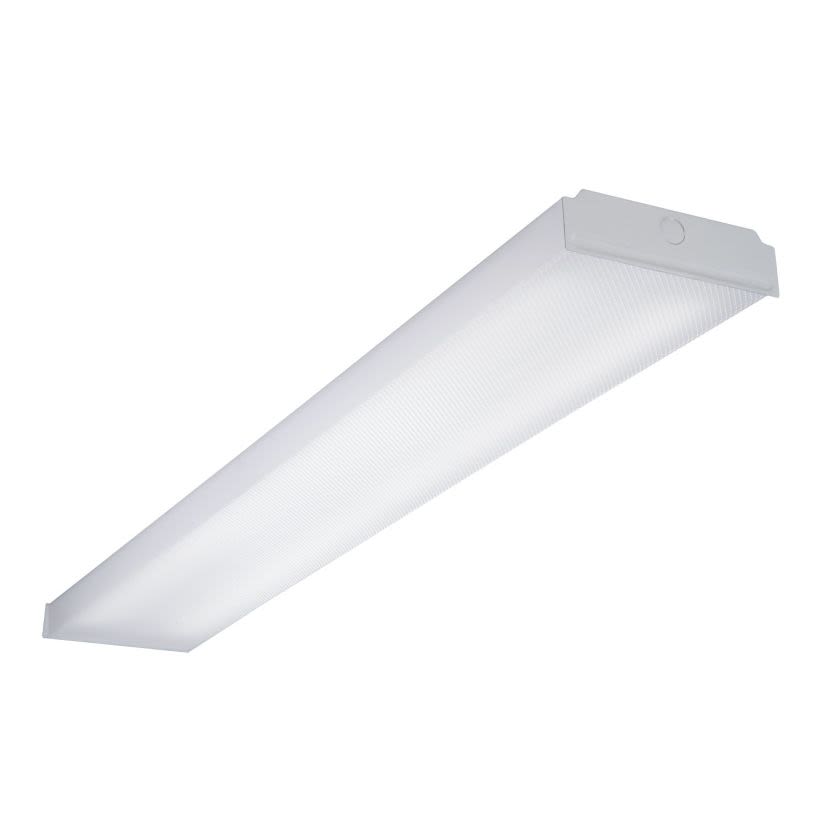

Metalux 4WNLED-LD4-40SL-F-UNV-L840-CD1-U WNLED Utility Wraparound, (1) Lamp, 32.2 W Fixture, 120 to 277 V, White Enamel Painted Housing
š Ships Quickly from Cooper
Metalux 4WNLED-LD4-40SL-F-UNV-L840-CD1-U
Metalux 4WNLED-LD4-40SL-F-UNV-L840-CD1-U WNLED Utility Wraparound, (1) Lamp, 32.2 W Fixture, 120 to 277 V, White Enamel Painted HousingNon-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #4WNLED-LD4-40SL-F-UNV-L840-CD1-U
Werner Part #4106894
UPC080083756889
Non-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #4WNLED-LD4-40SL-F-UNV-L840-CD1-U
Werner Part #4106894
UPC080083756889
Product Description
Metalux Wraparound, Utility, Series: WNLED, 120 to 277 V, 32.2 W Fixture, 0.13 A, 1 Lamps, 125 Lumens/W Light Output, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Standard Frosted Acrylic Lens, 4029 Lumens, Pendant/Stem/Surface/Suspended Mounting, CRS Housing Material, White Enamel Painted Housing Finish, 48 in L x 7-5/8 in W x 2-1/2 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Average Life60000 hr
Ballast Type0 to 10 V Dimmable
Color Rendering Index (CRI)80
Color Temperature4000 K
Country of OriginMX
Dimensions48 in L x 7-5/8 in W x 2-1/2 in H
Fixture Wattage32.2 W
Housing FinishWhite Enamel Painted
Housing MaterialCRS
Lamp TypeLED
Lens TypeStandard Frosted Acrylic
Lumen4029 Lumens
ManufacturerCooper Lighting Solutions
Mounting TypeSurface Mount
Number of Lamps1
Package TypeEACH
SeriesWNLED
TypeUtility
Voltage Rating120 to 277 V
Wattage36 W
Documents
Applications
Commercial, Schools, Institutional, Retail, Residential and Lighting Applications
Features
- 4 ft and 2 ft product configurations
- Frost lens offers best-in-class uniform illumination
- UNV (120 to 277 V) 0 to 10 V dimmable driver
- Ideal for single or continuous row applications
- Excellent performance, DLC listed with up to 118 Lumens/W
- 0.13 A at 277 V amperage rating
Specifications
- California Title 24 Compliant
- cUL Listed for Damp Location
- DLC Listed
- ECCN: EAR99NLR
- LM-79/80 Compliant
- NEC 410.16
- RoHS Compliant
- UL Listed
Warranty
5 years
