Metalux 24SR-LD2-48-C-UNV-L835-CD1-U

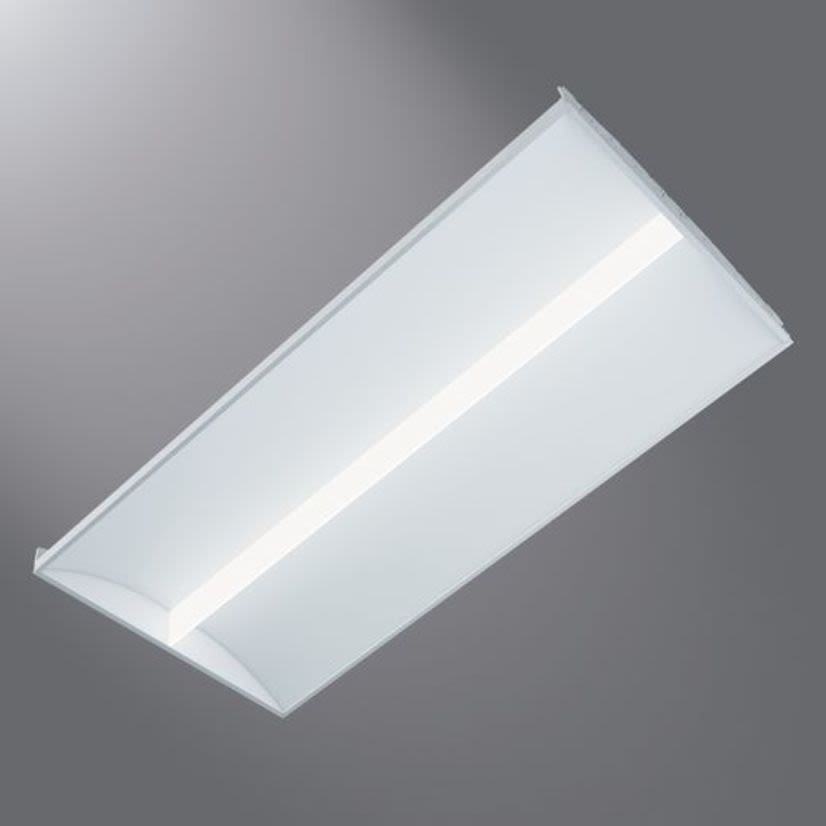

Metalux 24SR-LD2-48-C-UNV-L835-CD1-U 24SR Specification Recessed Troffer, (1) Lamps Lamp, 38 W Fixture, 120/277 V AC, Aluminum Housing
š Ships Quickly from Cooper
Metalux 24SR-LD2-48-C-UNV-L835-CD1-U
Metalux 24SR-LD2-48-C-UNV-L835-CD1-U 24SR Specification Recessed Troffer, (1) Lamps Lamp, 38 W Fixture, 120/277 V AC, Aluminum HousingNon-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #24SR-LD2-48-C-UNV-L835-CD1-U
Werner Part #4134946
UPC080083752492
Non-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #24SR-LD2-48-C-UNV-L835-CD1-U
Werner Part #4134946
UPC080083752492
Product Description
Metalux, 24SR-LD2-48-C-UNV-L835-CD1-U, Specification Recessed Troffer, Series: 24SR, 120/277 V AC, 38 W Fixture, 0.138 A, 1 Lamps, 132 Lumens/W Light Output, 100000 hr Average Life, 3500 K Color Temperature, 85 CRI, 0 to 10 VDC Dimming Ballast, Acrylic Lens, 4800 Lumens, Ceiling Mounting, Aluminum Housing Material, 49-1/2 in L x 24-1/8 in W x 6-1/8 in H Dimensions
Attributes
Documents
Warranty
Applications
Features
Specifications
Attributes
Average Life100000 hr
Ballast Type0 to 10 VDC Dimming
Color Rendering Index (CRI)85
Color Temperature3500 K
Country of OriginMX
Dimensions49-1/2 in L x 24-1/8 in W x 6-1/8 in H
Fixture Wattage38 W
Housing FinishHigh Gloss Baked White Enamel
Housing MaterialAluminum
Insulation TypeClass B
Lamp Base TypeMedium Bi-Pin
Lamp TypeLED
Lamp Wattage32 W
Lens TypeAcrylic
Lumen4800 Lumens
ManufacturerCooper Lighting Solutions
Mounting TypeRecessed
Number of Lamps1
Package TypeEACH
Series24SR
TypeCurved Recessed Static
Type / StyleCurved Recessed Static
Voltage Rating120/277 V AC
Wattage38 W
Documents
Warranty
Limited
Applications
For way finding, paths of egress, school colors, space identification, pathways, team colors, highlight merchandise, traffic influencer, customer checkout, service area, zone, activity identification and lighting applications
Features
- The Cruze series features efficiency, quality and performance
- High performance efficacy up to 146 Lumens/W
- Over 60% energy savings when compared to a fluorescent troffers
- Optional integrated sensor provides occupancy sensor and photocell
- Standard 0 to 10 V continuous dimming driver
- L92 at 100000 hr with 5 year warranty
- Rigid housing is die formed of code gauge prime cold rolled steel and features full length die formed stiffeners and unibody endplate for added strength
- Side flanges are hemmed
- Innovative design provides superior lens brightness uniformity and visual comfort
- Unibody endplates are securely attached with interlocking tabs and screws
- Four auxiliary fixture end suspension points provided
- 0.11 A at 277 VAC amperage rating
- Leverages our patented wavestream technology with AccuAim optics
- Advanced optical control with optimal illumination
Specifications
- DLC Approved
- LM79/LM80 Tested
- NoM Certified
- RoHS Compliant
- UL Recognized
- cULus Listed for Damp Location
- DLC Listed
- ECCN: EAR99NLR
- LM-79/80 Compliant
- NOM Compliant
