Metalux SMD4R69SWH

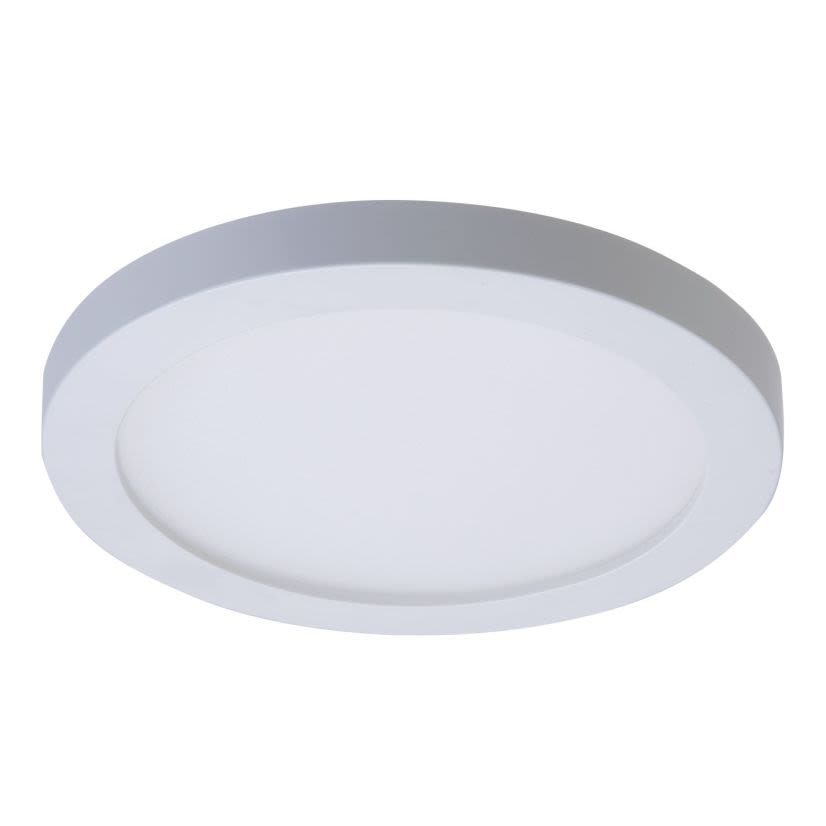

Halo SMD4R69SWH Round Downlight With SeleCCTable 5 Colors Switch, (1) Lamp, 9.3/9.4 W Fixture, 120 V, Matte White Housing
🚚 Ships Quickly from Cooper
Metalux SMD4R69SWH
Halo SMD4R69SWH Round Downlight With SeleCCTable 5 Colors Switch, (1) Lamp, 9.3/9.4 W Fixture, 120 V, Matte White HousingNon-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #SMD4R69SWH
Werner Part #4472368
UPC080083020904
Non-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #SMD4R69SWH
Werner Part #4472368
UPC080083020904
Product Description
Halo Downlight, Round, Series: SMD4, 120 V, 9.3/9.4 W Fixture, 0.077 A, 1 Lamp, 81.7 Lumens/W Light Output, 50000 hr Average Life, 5000 K Color Temperature, 90 CRI, Dimmable Ballast, High-Impact Diffuse Polystyrene Lens, 600 Lumens, Spray Foam Insulation, Surface Mounting, Stamped Aluminum Housing Material, Matte White Housing Finish, 4 in Dia Dimensions
Attributes
Documents
Included
Applications
Features
Specifications
Warranty
Attributes
Average Life50000 hr
Ballast TypeDimmable
Color Rendering Index (CRI)90
Color Temperature5000 K
Country of OriginCN
Dimensions4 in Dia
Fixture Wattage9.3/9.4 W
Housing FinishMatte White
Housing MaterialStamped Aluminum
Insulation TypeSpray Foam
Lamp TypeLED
Lens TypeHigh-Impact Diffuse Polystyrene
Lumen600 Lumens
ManufacturerCooper Lighting Solutions
Mounting TypeSurface Mount
Number of Lamps1
SeriesSMD4
TypeRound
Voltage Rating120 V
Wattage9W
Documents
Included
Screwbase Adapter
Applications
Lighting Application
Features
- 1/2 in ultra-low profile surface luminaire with wide distribution
- Ceiling/wall mounting in compatible junction boxes
- Installs in many 3-1/2 and 4 in square, octagon or round junction boxes
- Use SMDACCKIT to retrofit into 4 in housings with screwbase adapter
- L70 at 50000 hr (70% lumen maintenance at 50000 hr)
- Wet location listed for showers and protected ceilings
- Damp location listed for indoor ceiling or wall mounting
- 120 V, phase dimming down to 5%
Specifications
- AIR-TITE Certified
- ASTM E283
- California Title 20 Compliant
- California Title 24 Compliant
- cULus Listed
- ECCN: EAR99NLR
- ENERGY STAR Certified
- FCC 47CFR Part 15 Class B
- IECC Compliant
- IES LM-79-08/80-08/TM-21-11 Compliant
- NFPA 70, NEC Section 410.16 (A)(3)/410.16 (C)(5)
- RoHS Compliant
Warranty
5 years Limited
