Metalux SMD12R209SWHE

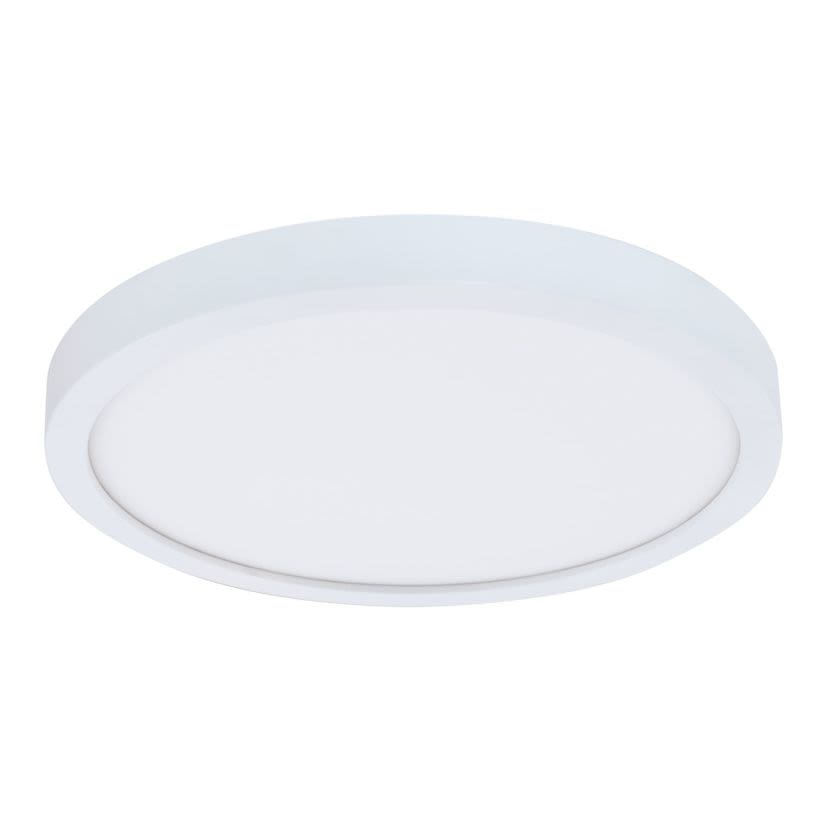

Halo SMD12R209SWHE Round Surface Mount Downlight, 120 to 277 V, Matte White Housing
🚚 Ships Quickly from Cooper
Metalux SMD12R209SWHE
Halo SMD12R209SWHE Round Surface Mount Downlight, 120 to 277 V, Matte White HousingNon-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #SMD12R209SWHE
Werner Part #4367329
UPC080083138005
Non-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #SMD12R209SWHE
Werner Part #4367329
UPC080083138005
Product Description
Halo Surface Mount Downlight, Round, Series: SMD12R Series, 120 to 277 V, 0.09 A, 26.32 W Lamp, 90 Lumens/W Light Output, 50000 hr Average Life, White Light, 5000 K Color Temperature, 90 CRI, 0 to 10 V 5% Dimming Ballast, Diffused Polystyrene Lens, 200 Lumens, Surface Mounting, Aluminum Housing Material, Matte White Housing Finish, 12 in Dia x 1.37 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Average Life50000 hr
Ballast Type0 to 10 V 5% Dimming
Color Rendering Index (CRI)90
Color Temperature5000 K
Country of OriginCN
Dimensions12 in Dia x 1.37 in H
Housing FinishMatte White
Housing MaterialAluminum
Lamp TypeLED
Lamp Wattage26.32 W
Lens TypeDiffused Polystyrene
Light ColorWhite
Lumen200 Lumens
ManufacturerCooper Lighting Solutions
Mounting TypeSurface Mount
SeriesSMD12R Series
TypeRound
Voltage Rating120 to 277 V
Wattage27 W
Applications
For ceiling/wall mounting in compatible junction boxes and residential applications
Features
- Ceiling/wall mounting in compatible junction boxes
- Up to 2200 lumens
- Installs in many 3-1/2 and 4 in square, octagon or round junction boxes
- Five CCT field selectable: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
- L70 at 50000 hr (70% lumen maintenance at 50000 hr)
Specifications
- ASTM E283
- California Title 20/24 Compliant
- ECCN: EAR99NLR
- ENERGY STAR Certified
- FCC 47 CFR Part 15 Class B
- IECC Compliant
- IES LM-79-08
- IES LM-80-08
- IES TM-21-11
- NEC Section 410.16 (A)(3) and 410.16 (C)(5)
- NFPA 70
- UL Listed for Damp/Wet Locations
Warranty
5 years
