Metalux IAF-232-UNV-EB81-U

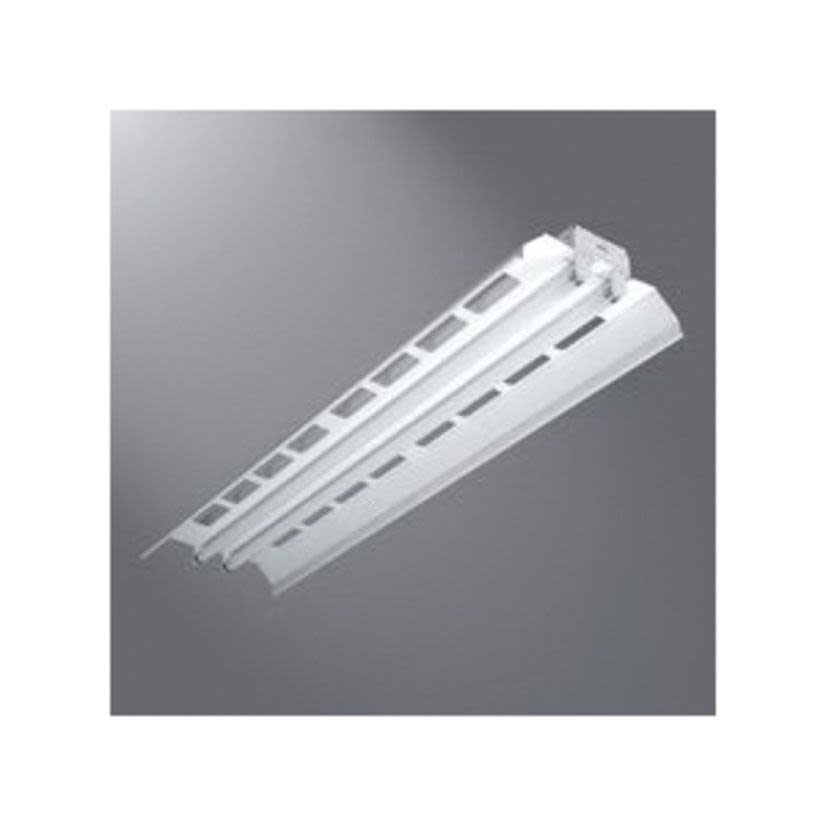

Metalux IAF-232-UNV-EB81-U IAF/ICF Universal Industrial Strip Light Fixture, (2) T8 Lamp, 120/277 V AC, Baked White Enamel Housing
Metalux IAF-232-UNV-EB81-U
Metalux IAF-232-UNV-EB81-U IAF/ICF Universal Industrial Strip Light Fixture, (2) T8 Lamp, 120/277 V AC, Baked White Enamel HousingNon-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #IAF-232-UNV-EB81-U
Werner Part #3833857
UPC080083519392
Non-stock product. Available to order - lead time may vary.
BrandMetalux
MFG #IAF-232-UNV-EB81-U
Werner Part #3833857
UPC080083519392
Product Description
Metalux Industrial Strip Light Fixture, Universal, Series: IAF/ICF, 120/277 V AC, 0.116 A, T8 Lamp, 32 W Lamp, 2 Lamps, Instant Start Electronic Ballast, Surface Mounting, Cold Rolled Steel Housing Material, Baked White Enamel Housing Finish, 48 in H x 12 in W x 4-5/8 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Ballast TypeInstant Start Electronic
Country of OriginMX
Dimensions48 in H x 12 in W x 4-5/8 in D
Housing FinishBaked White Enamel
Housing MaterialCold Rolled Steel
Lamp TypeT8
Lamp Wattage32 W
ManufacturerCooper Lighting Solutions
Mounting TypeSurface
Number of Lamps2
SeriesIAF/ICF
TypeUniversal
Voltage Rating120/277 V AC
Documents
Applications
Area Lighting and Industrial Applications
Features
- Heavy duty, aperture or closed top reflector
- Apertured reflector standard with 8% uplight
- Flip-up socket feature for faster installation OUT of the box
- Die formed channel with baked white enamel finish
- Pressure lock or spring loaded lampholders
- Tandem 8 ft L
- Lamps not included with either IAF or ICF series
- Numerous knockout's for ease of installation
- Groove for tong hanger lampholder bracket flips in place
- Electrical ballast are CBM/ETL class p and positively secured by mounting bolts
- Multi-stage, iron phosphate pretreatment ensures maximum bonding and rust inhibition
- High performance ballast
- 1 ballast factor
Specifications
UL Listed|cUL Listed for Damp Locations|ECCN: EAR99NLR
