McGill 900003N

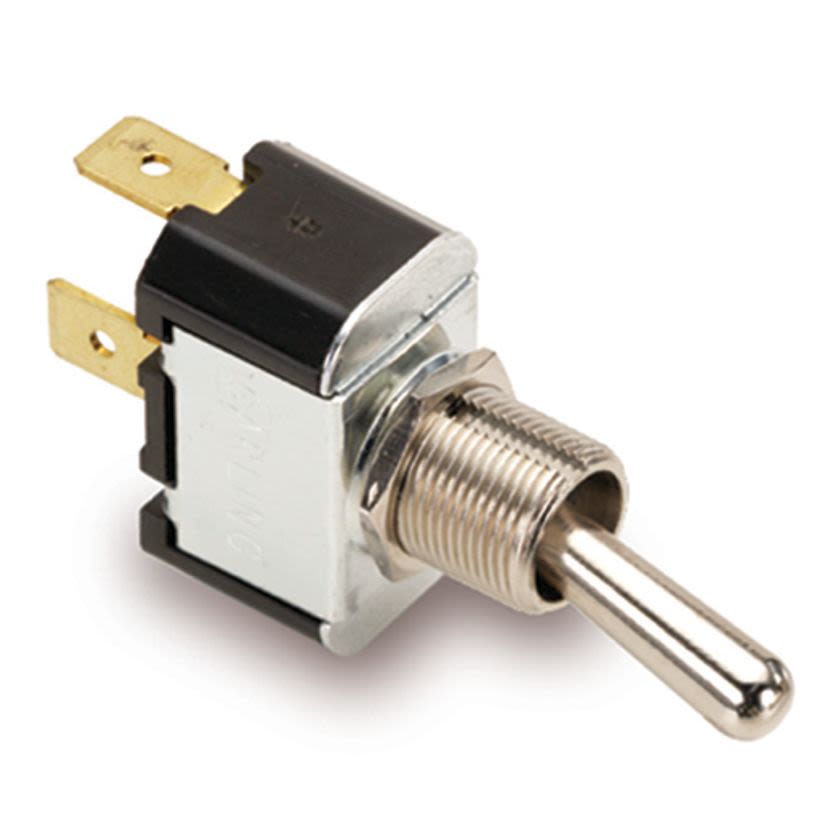

McGill 900003N 90 Series Toggle Switch, 125/250 V AC, 20/12 A, 1 hp Power Rating, SPST Contact
McGill 900003N
McGill 900003N 90 Series Toggle Switch, 125/250 V AC, 20/12 A, 1 hp Power Rating, SPST ContactInventory Not Available
BrandMcGill
MFG #900003N
Werner Part #3865000
UPC036283001496
Inventory Not Available
BrandMcGill
MFG #900003N
Werner Part #3865000
UPC036283001496
Product Description
McGill Toggle Switch, Series: 90 Series, 125/250 V AC, 20/12 A, 1 hp Power, SPST Contact Configuration, 1 Pole, Toggle Actuator, Quick-Connect Terminal, Phenolic, 1.13 in L x 0.63 in W x 2.18 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Actuator TypeToggle
Country of OriginMX
Dimensions1.13 in L x 0.63 in W x 2.18 in H
Electrical Ratings1 hp
ManufacturerEmerson Electric
MaterialPhenolic
Number of Poles1
Series90 Series
Terminal TypeQuick-Connect
Type / Style90 Series Single Pole Toggle Switches
Voltage Rating125/250 V AC
Documents
Applications
Marine, Food Service, Generator, Industrial Control and Office Automation Markets
Features
- Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life
- Appropriate for use in low voltage DC applications
- Indicating plate is furnished for maintained ON-OFF circuits
- Mounting hardware consists of nickel plated hex nut and knurled nut
Specifications
Standards/Approvals: RoHS Compliant|UL File No. E335442|UL Standard 1054|Guide WORY2|CSA File No. 249055|CSA C22.2 No.55|UL Listed
