Lithonia Lighting ELM2L UVOLT LTP M12

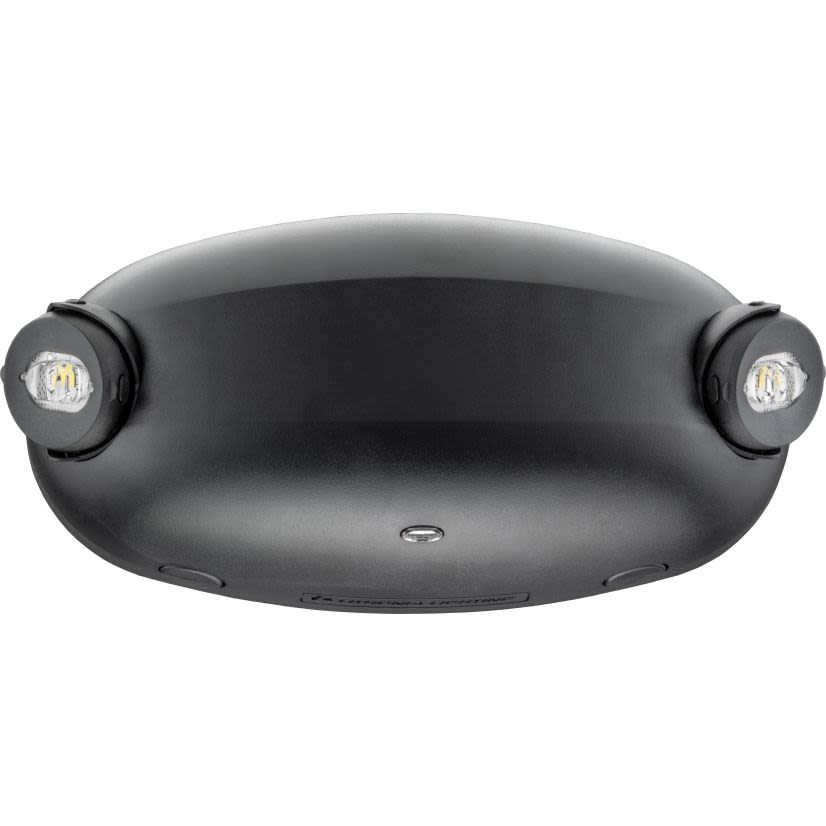

Lithonia Lighting Quantum ELM2L UVOLT LTP M12 Adjustable Optics Emergency Light, 2.4 W LED Lamp, 120 to 347 V AC, 2 Heads, Thermoplastic
🚚 Ships Quickly from Acuity
Lithonia Lighting ELM2L UVOLT LTP M12
Lithonia Lighting Quantum ELM2L UVOLT LTP M12 Adjustable Optics Emergency Light, 2.4 W LED Lamp, 120 to 347 V AC, 2 Heads, ThermoplasticNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #ELM2L UVOLT LTP M12
Werner Part #4255042
UPC191848078112
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #ELM2L UVOLT LTP M12
Werner Part #4255042
UPC191848078112
Product Description
Lithonia Lighting Quantum Emergency Light, Adjustable Optics, Series: ELM2L, 120 to 347 V AC, 1.35/1.64 W Fixture, 0.022/0.014 A, 50/60 Hz Frequency, LED Lamp, 2.4 W Lamp, 2 Heads, 220 Lumens, 10 years Average Life, 5000 K Color Temperature, Acrylic Lens, Battery Power Source, Surface Mounting, 9.72 in L x 3.1 in W x 4.68 in H Dimensions, Thermoplastic, White
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Average Life10 years
ColorWhite
Color Temperature5000 K
Country of OriginMX
Dimensions9.72 in L x 3.1 in W x 4.68 in H
Fixture Wattage1.35/1.64 W
Frequency Rating50/60 Hz
Lamp TypeLED
Lamp Wattage2.4 W
Lens TypeAcrylic
Lumen220 Lumens
ManufacturerAcuity Brands
MaterialThermoplastic
Mounting TypeSurface
Power SourceBattery
SeriesELM2L
TypeAdjustable Optics
Voltage Rating120 to 347 V AC
Documents
Applications
Education, Government, Healthcare, Hospitality, Offices, Banks, Religious, Retail, Sports and Recreation and Residential Applications
Features
- It provides a minimum of 90 min of illumination when there is a loss of power
- MOUNTING - Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
- UPGRADE - Easily replaces existing emergency lighting units
- CONTROLS - Optional STAR self-testing automated reporting feature
- VOLTAGE - Functions between 120 and 347 V with input wattage of 1.35 W
- HOUSING - Standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
- SELF-DIAGNOSTICS - Includes test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 min of emergency power
Specifications
- cULus Listed
- CA 20 Section 1605.3 (W)(4)
- UL 924 Listed for Damp Location
- NFPA 101/70
- NOM Certified
- FCC Title 47, Part 15, Subpart B
- OSHA Compliant
- C22.2 No. 141-10
- BC Certified
Warranty
5 years Limited
