Leviton T5833-E

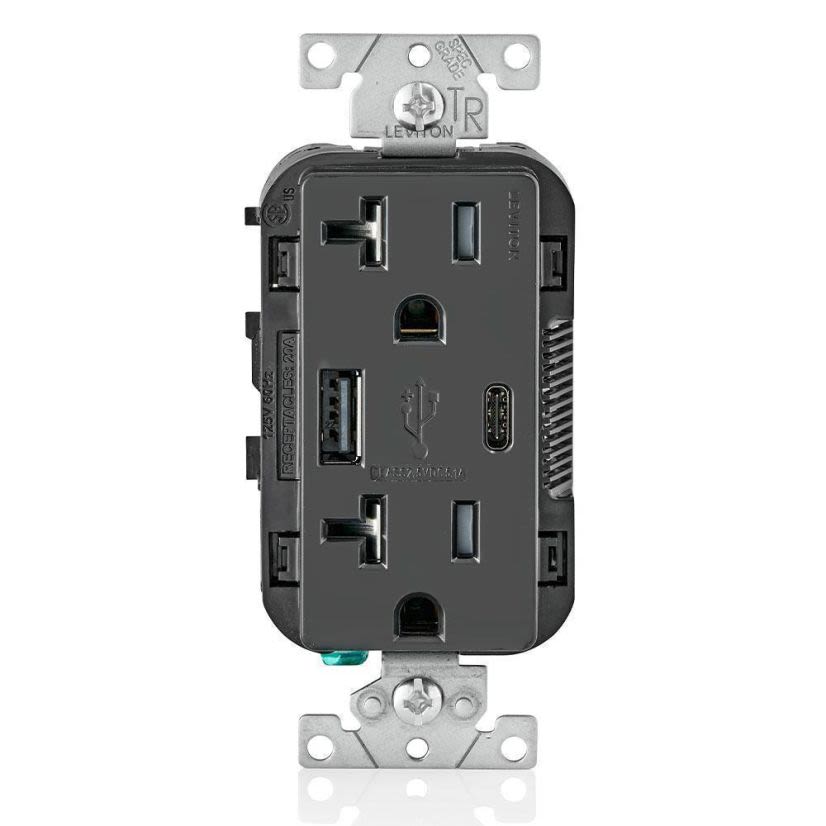

Leviton Decora T5833-E Combination Grounding Tamper-Resistant Duplex Receptacle and USB Charger, 125 V AC, 20 A, Black
Leviton T5833-E
Leviton Decora T5833-E Combination Grounding Tamper-Resistant Duplex Receptacle and USB Charger, 125 V AC, 20 A, BlackIn Stock: 12more info
|
BrandLeviton
MFG #T5833-E
Werner Part #4360303
UPC078477841419
In Stock: 12more info
|
BrandLeviton
MFG #T5833-E
Werner Part #4360303
UPC078477841419
Product Description
Leviton Decora Duplex Receptacle and USB Charger, Combination Grounding Tamper-Resistant, 125 V AC, 20 A Electrical Rating, 14 to 12 AWG Wire, Type-A USB 2.0/C USB, 2 USB Quantity, 5.1 A USB, 4.04 in H x 1.73 in W x 1.68 in D Size, Screw Connection, Threaded/Wall Box Mounting, Commercial/Residential Specification Grade, Wiring Method: Back/Side Wired, Thermoplastic, Black, Environmental Conditions: -10 to 40 deg C Operating Temperature
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorBlack
ConnectionScrew
Country of OriginCN
Electrical Ratings125 V AC, 20 A
GradeCommercial/Residential Specification
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeThreaded/Wall Box
Size4.04 in H x 1.73 in W x 1.68 in D
TypeCombination Grounding Tamper-Resistant
USB Rating5.1 A
USB TypeType-A USB 2.0/C
Documents
Applications
Kitchens, Bedrooms, Home Offices, College Dormitories, Airport Lounges, Hospitals, Salons and Spas, Hotels, Meeting Rooms, Cafes and Restaurants Applications
Features
- Smart - built-in smart chip recognizes the individual device's charging requirement to optimize the charge
- Powerful - two high powered charging ports deliver a combined total of 5.1 A charging current and 25+ W of power
- Convenient - no more searching for charging adapters, upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
- Easy - USB-C has a reversible connector that can be easily inserted into the charging port in any direction
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Type A and Type C ports charge phones and tablets faster than manufacturer supplied AC adapters
- The Type C port provides up to 59% faster charging power versus competitors
- One Type A port and one Type C port, combined total of 5.1 A of charging power
- Tamper-resistant to help prevent access by most non-rated/foreign objects
- USB ports tested to withstand over 10000 insertions
- Charges most Type A and Type C USB powered devices
- Type C port provides more power for faster charging
- Compatible with Decora wallplates and Decora Plus screwless wallplates
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
Specifications
- UL 1310
- UL 498
- cCSAus Certified
- FCC Part 15 Class B
- NOM 057
- UL 94 V-0 Flammability Rating
Warranty
5 years Limited
