Leviton M58AC-HGW

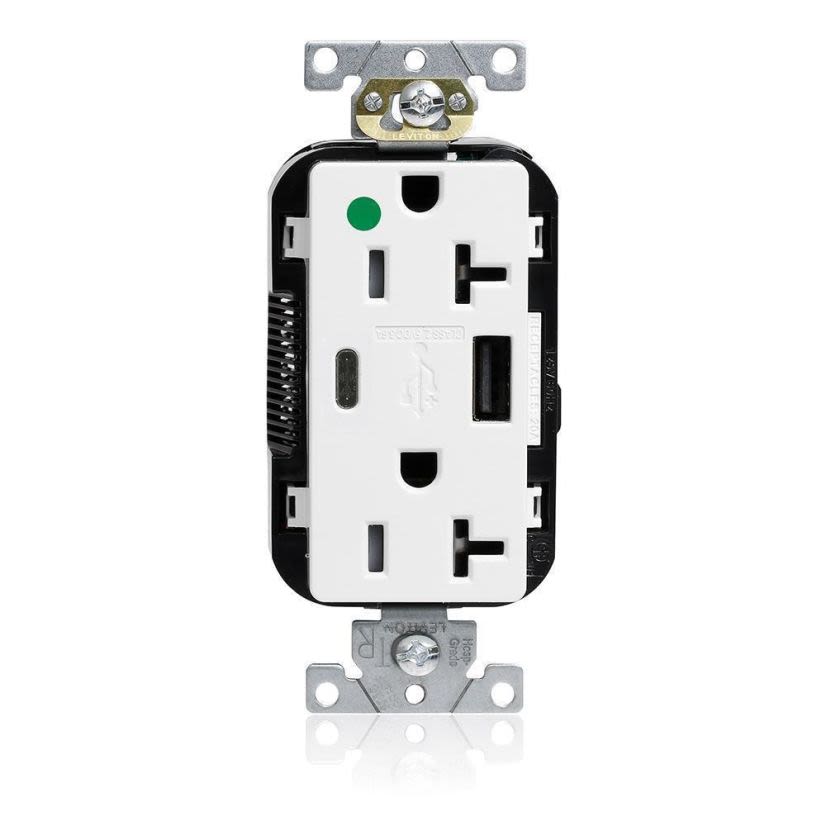

Leviton Lev-Lok Decora Plus M58AC-HGW Combination Extra Heavy Duty Self-Grounding Smooth Face Tamper-Resistant Duplex Receptacle and USB Charger, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton M58AC-HGW
Leviton Lev-Lok Decora Plus M58AC-HGW Combination Extra Heavy Duty Self-Grounding Smooth Face Tamper-Resistant Duplex Receptacle and USB Charger, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteOut of Stockmore info
|
BrandLeviton
MFG #M58AC-HGW
Werner Part #4323153
UPC078477434093
Out of Stockmore info
|
BrandLeviton
MFG #M58AC-HGW
Werner Part #4323153
UPC078477434093
Product Description
Leviton Lev-Lok Decora Plus Duplex Receptacle and USB Charger, Combination Extra Heavy Duty Self-Grounding Smooth Face Tamper-Resistant, 125 V AC, 20 A Electrical Rating, 2 Pole, 3 Wires, Type-A USB 2.0/C USB, 2 USB Quantity, 5.1 A USB, 4.04 in H x 1.73 in W Size, Modular Connection, Threaded/Wall Box Mounting, Hospital Grade, PBT Thermoplastic Polyester Resin, White, Environmental Conditions: -10 to 40 deg C Operating Temperature
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorWhite
ConnectionModular
Country of OriginCN
Electrical Ratings125 V AC, 20 A
GradeHospital
ManufacturerLeviton
MaterialPBT Thermoplastic Polyester Resin
Mounting TypeThreaded/Wall Box
Number of Poles2
Number of Wires3
Size4.04 in H x 1.73 in W
TypeCombination Extra Heavy Duty Self-Grounding Smooth Face Tamper-Resistant
USB Rating5.1 A
USB TypeType-A USB 2.0/C
Documents
Applications
Health Care Facilities, Lobbies, Waiting Rooms, Airports, Hospitality and Educational Institutions Applications
Features
- One Type A and one Type C USB port with a combined total of 5.1 A of charging power, the fastest in the industry
- Type A USBs are the most recognized and commonly used USB port, used in most desktops, laptops, and tablets, while Type C USBs are emerging as the latest standard for charging and transferring data
- For use with MSTWL Lev-Lok wiring modules only
- Brass self-grounding clip
- Impact and chemical-resistant PBT face for longer service life
- USB Type C provides faster charging, aligning with the emerging standard for most mobile devices
- USB ports spaced for simultaneous use and reduced USB cable stress
- Tamper-resistant shutters meet NEC Article 406.12 requirements
- Improved strap design provides greater support, even with ears removed
Specifications
- UL 498
- UL 1310
- CSA C22.2 No. 42
- CSA C22.2 No. 223
- FCC Approved
- NEMA WD-1
- NEMA WD-6
- cCSAus Certified
- ANSI C-73
- NOM-ANCE Certified
- UL 94 V-0 Flammability Rating
Warranty
5 years Limited
