IDEAL 83-9771

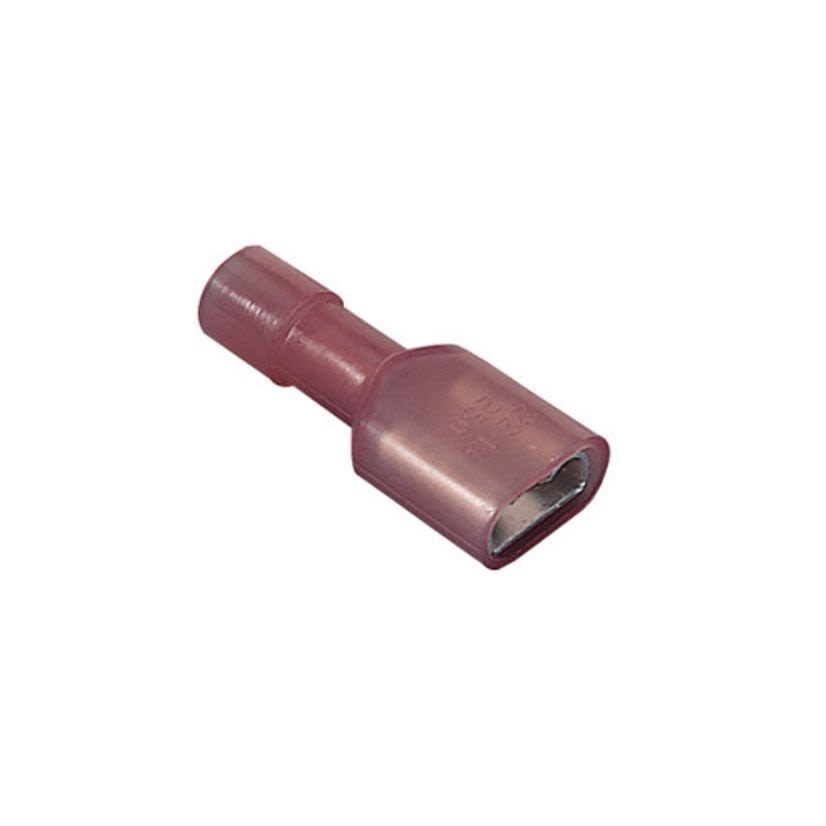

IDEAL® 83-9771 Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, Red
IDEAL 83-9771
IDEAL® 83-9771 Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, RedNon-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #83-9771
Werner Part #3853114
UPC783250490660
Non-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #83-9771
Werner Part #3853114
UPC783250490660
Product Description
IDEAL® Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 VAC, Specifications: 0.15 in Dia Insulation, 221 deg F, Brass/Nylon, Red, TiN Plated, 0.866 in L x 0.26 in W Dimensions, Fully Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeShouldered
ColorRed
Conductor size22 to 18 AWG
Country of OriginTaiwan, Province of China
Dimensions0.866 in L x 0.26 in W
FinishTin Plated
InsulatedFully Insulated
ManufacturerIdeal Industries
MaterialBrass/Nylon
Tab Size0.25 x 0.032 in
Temperature Rating221 deg F
Terminal TypeCrimp
Type / StyleFully Insulated
Voltage Rating300 VAC
Features
Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin plated brass construction for corrosion-resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportBrazed or butted seams prevent splittingFunnel entry insulatorsBeveled barrel openings provide easy wire entryClearly marked wire and stud rangesColor coded insulation
Specifications
0.15 in Dia Insulation
