IDEAL 83-9791

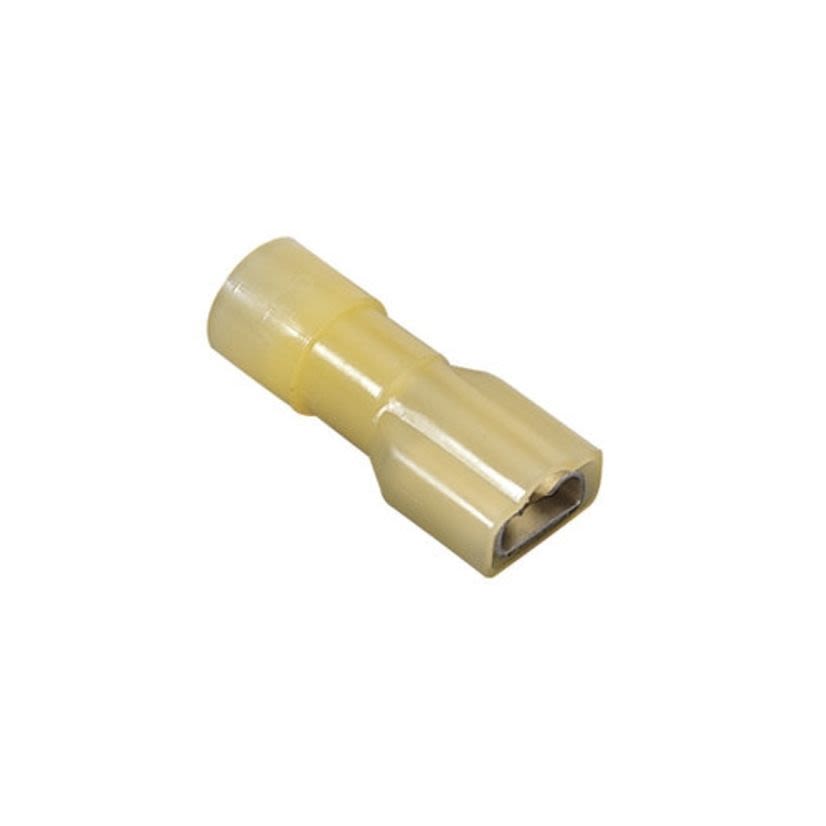

IDEAL® 83-9791 Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, Yellow
IDEAL 83-9791
IDEAL® 83-9791 Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, YellowNon-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #83-9791
Werner Part #40529
UPC783250490691
Non-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #83-9791
Werner Part #40529
UPC783250490691
Product Description
IDEAL® Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 VAC, Specifications: 0.244 in Dia Insulation, 221 deg F, Brass/Nylon, Yellow, TiN Plated, 0.945 in L x 0.26 in W Dimensions, Fully Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeShouldered
ColorYellow
Conductor size12 to 10 AWG
Country of OriginTaiwan, Province of China
Dimensions0.945 in L x 0.26 in W
FinishTin Plated
InsulatedFully Insulated
ManufacturerIdeal Industries
MaterialBrass/Nylon
Tab Size0.25 x 0.032 in
Temperature Rating221 deg F
Terminal TypeCrimp
Type / StyleTerminal
Voltage Rating300 VAC
Features
Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin plated brass construction for corrosion-resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportBrazed or butted seams prevent splittingFunnel entry insulatorsBeveled barrel openings provide easy wire entryClearly marked wire and stud rangesColor coded insulation
Specifications
0.244 in Dia Insulation
