EATON FMV13LCY/UNV1 76

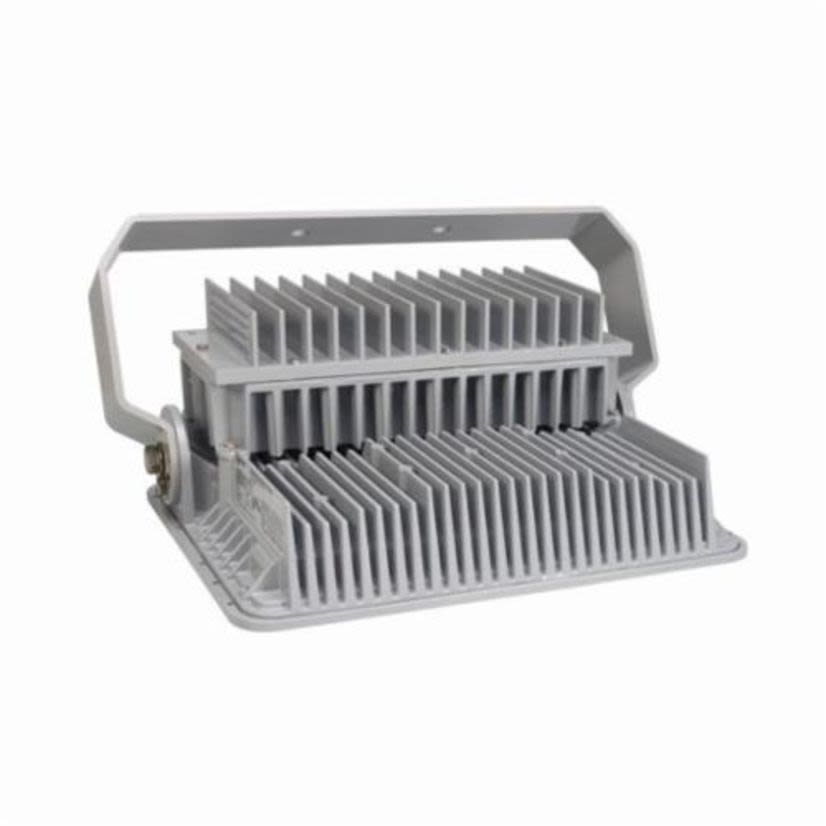

Crouse-Hinds Champ FMV13LCY/UNV1 76 FMV Floodlight Fixture, LED Lamp, 400 W Fixture, 100 to 277 VAC, 108 to 250 VDC, Corro-Free Epoxy Powder Coated Housing
EATON FMV13LCY/UNV1 76
Crouse-Hinds Champ FMV13LCY/UNV1 76 FMV Floodlight Fixture, LED Lamp, 400 W Fixture, 100 to 277 VAC, 108 to 250 VDC, Corro-Free Epoxy Powder Coated HousingNon-stock product. Available to order - lead time may vary.
BrandEATON
MFG #FMV13LCY/UNV1 76
Werner Part #3996332
UPC662276317307
Non-stock product. Available to order - lead time may vary.
BrandEATON
MFG #FMV13LCY/UNV1 76
Werner Part #3996332
UPC662276317307
Product Description
Crouse-Hinds Champ Floodlight Fixture, Series: FMV, 100 to 277 VAC, 108 to 250 VDC, 400 W Fixture, 1.608 A, LED Lamp, 112 W Lamp, 60000 hr Average Life, Cool White Light, 5000 K Color Temperature, 70 CRI, Glass Lens, 13100 Lumens, IP66 Enclosure, Yoke Mounting, Aluminum Housing Material, Corro-Free Epoxy Powder Coated Housing Finish, 12 in H x 15-1/2 in W x 7 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Average Life60000 hr
Ballast TypeLED DRIVERS
Ceiling Opening6-1/2 in
Color Rendering Index (CRI)70
Color Temperature5000 K
Country of OriginUS
Diameter6 in
Dimensions12 in H x 15-1/2 in W x 7 in D
Enclosure TypeIP66
Fixture Wattage400 W
Housing FinishCorro-Free Epoxy Powder Coated
Housing MaterialAluminum
Insulation TypeIC
Lamp TypeLED
Lamp Wattage112 W
Lens TypeGlass
Light ColorCool White
Lumen13100 Lumens
ManufacturerEaton
Mounting TypeCeiling
SeriesFMV
Suitable For Use WithHalo Recessed Downlight Fixture
TypeNew Construction
Type / StyleFlood
Voltage Rating100 to 277 V AC/108 to 250 V DC
Documents
Applications
Industrial, Oil, Gas Refineries, Drilling Rigs, Petrochemical Facilities, Food and Beverage Facilities, Platforms, Loading Docks, Tunnels, Outdoor Wall and Stanchion Mounted General Area Lighting Applications
Warranty
5 Years
Features
- Providing ideal solutions for a wide range of harsh and hazardous applications
- Instant illumination and restrike
- Better visibility with crisp, white light
- Cold temperature operation/no warm-up required
- Minimum T3C temperature rating safely operate in the most hazardous environments and any non-hazardous location
- Serviceable drivers
- Easy installation yoke design to mount to SFA6
- Energy efficient technology up to 72% energy savings over HID fixtures
- 60000 hr of rated life at 55 deg C eliminates need for frequent lamp replacement
- Contains no mercury or other hazardous substances
- Shock and vibration resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- 7 x 6 floodlight pattern optics
- Heat and impact resistant glass (standard) lens
- Silicone or neoprene gasket material, stainless steel external hardware
- >0.9 power factor
- Operating ambient -40 to 65 deg C
- Locations requiring continuous and consistent light levels in extreme ambient temperatures
- Where extremely corrosive, wet, dusty, hot and/or cold conditions exist
