Cutler-Hammer Series D7PF4AA

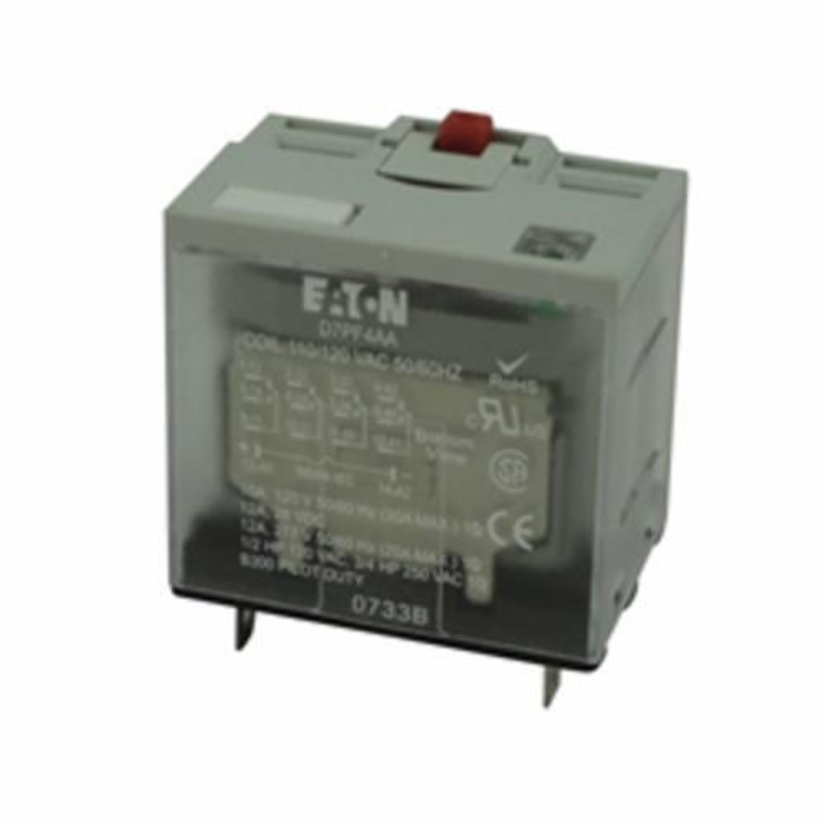

EATON Cutler-Hammer Series D7PF4AA Ice Cube Full Featured General Purpose Relay, 15 A, 4PDT Contact, 120 VAC V Coil
Cutler-Hammer Series D7PF4AA
EATON Cutler-Hammer Series D7PF4AA Ice Cube Full Featured General Purpose Relay, 15 A, 4PDT Contact, 120 VAC V CoilNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #D7PF4AA
Werner Part #3875163
UPC782116484973
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #D7PF4AA
Werner Part #3875163
UPC782116484973
Product Description
EATON Cutler-Hammer Series General Purpose Relay, Ice Cube Full Featured, Series: D7, 15 A, 120 VAC Coil, 4PDT, 15 A Contact, 4 Pole, Socket Mount, Plug-In Terminal, LED, IP40, -40 to 131 deg F, 1.54 in L x 1.6 in W x 1.1 in H
Attributes
Documents
Features
Attributes
Coil Voltage120 VAC
Contact Form4PDT
Contact Rating15 A
Country of OriginChina
Dimensions1.54 in L x 1.6 in W x 1.1 in H
Display TypeLED
Enclosure TypeIP40
ManufacturerEaton
Mounting TypeSocket
Number of Poles4
SeriesD7 Series
Temperature Rating-40 to 131 deg F
Terminal TypePlug-In
Type / StyleIce Cube Full Featured
Features
Flag indicator shows relay status in manual or powered conditionBi-polar LED status lamp allows for reverse polarity applications - shows coil ON/OFF statusColor coded pushbutton identifies AC coils with red or DC coils with blue pushbuttonsLock down door when activated holds pushbutton and contacts in the operate positionFinger grip cover allows operator to remove relays from sockets more easily than conventional relaysWhite plastic ID tag/write label used for identification of relays in multi-relay circuits
