Cutler-Hammer Series R9J3030FJ

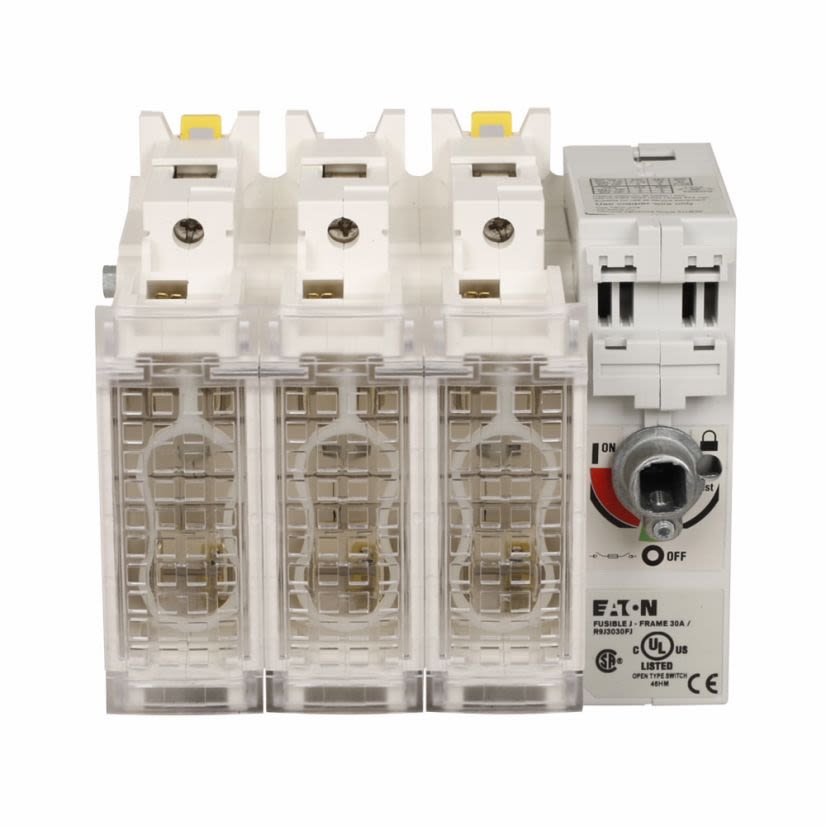

EATON R9J3030FJ J -Frame Fusible Rotary Disconnect Switch, 600 V AC, 30 A, 20 hp, 22 hp, 3 Poles
Cutler-Hammer Series R9J3030FJ
EATON R9J3030FJ J -Frame Fusible Rotary Disconnect Switch, 600 V AC, 30 A, 20 hp, 22 hp, 3 PolesIn Stock: 7more info
|
BrandCutler-Hammer Series
MFG #R9J3030FJ
Werner Part #3889206
UPC786685408774
In Stock: 7more info
|
BrandCutler-Hammer Series
MFG #R9J3030FJ
Werner Part #3889206
UPC786685408774
Product Description
EATON Rotary Disconnect Switch, J -Frame Fusible, Series: R9 Series, 600 V AC, 30 A, 20 hp, 22 hp, 3 ph, 3 Pole, 100/200 kA Short Circuit, Rotary Handle Actuator, Class J Insulation, DIN Rail Mount, Lug Terminal, 4.77 in L x 5.88 in W x 4.65 in H
Attributes
Documents
Applications
Features
Warranty
Attributes
Connection TypeSteel Box Lug
Country of OriginFR
Dimensions4.77 in L x 5.88 in W x 4.65 in H
Frequency Rating50/60 Hz
Horsepower20 hp, 22 hp
Insulation TypeClass J
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypeBolted-On
Number of Poles3
Package TypeEACH
Phase3
SeriesR9 Series
Short Circuit Current Rating100/200 kA
Size of Wire14 to 4 AWG
Temperature Rating40 deg C
Terminal TypeLug
Trip TypeNon-Interchangeable Thermal Magnetic
TypeJ -Frame Fusible
Applications
Industrial Facilities, Factories, Control and Power Distribution Applications
Features
- Load break functionality
- Double break contacts
- Compact footprints
- This function provides a simple alternative to a separately wired pushbutton
- Defeatable pistol handles automatically re-latch when the panel door is closed
- Front or side operation
- Flange operation
Warranty
1 year
