Crouse-Hinds series GUAX26

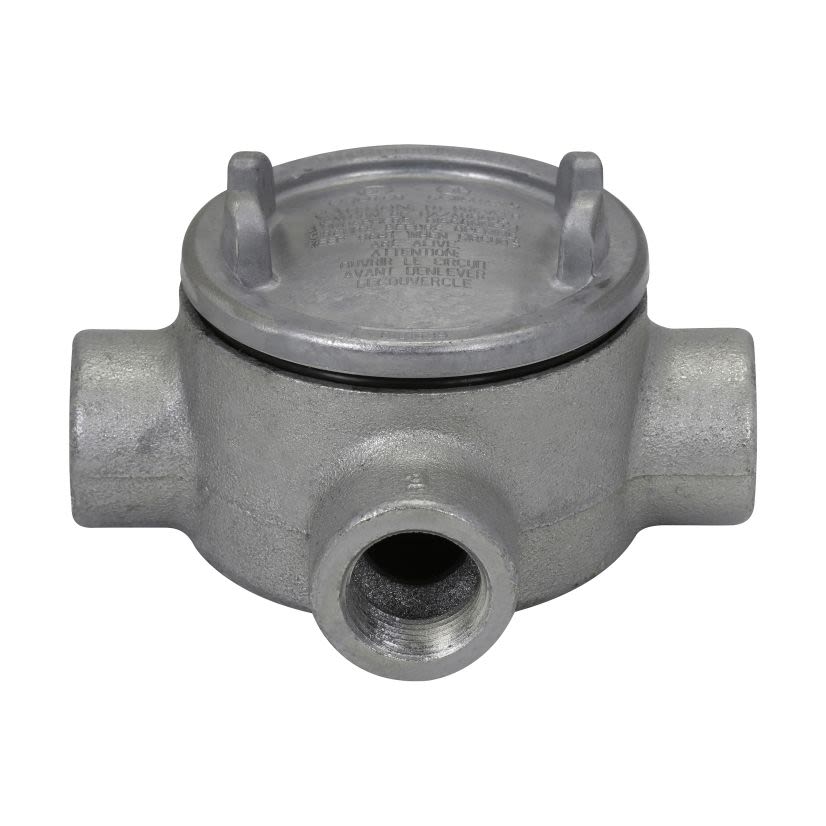

EATON Crouse-Hinds Condulet GUAX26 Type X Dust-Ignitionproof Explosionproof Raintight Conduit Outlet Box With Cover, 3/4 in, 3 in Cover Opening, 13.5 cu-in Capacity, Aluminum Acrylic Painted/Electro-Galvanized
Crouse-Hinds series GUAX26
EATON Crouse-Hinds Condulet GUAX26 Type X Dust-Ignitionproof Explosionproof Raintight Conduit Outlet Box With Cover, 3/4 in, 3 in Cover Opening, 13.5 cu-in Capacity, Aluminum Acrylic Painted/Electro-GalvanizedIn Stock: 5more info
|
BrandCrouse-Hinds series
MFG #GUAX26
Werner Part #26699
UPC782274468907
In Stock: 5more info
|
BrandCrouse-Hinds series
MFG #GUAX26
Werner Part #26699
UPC782274468907
Product Description
EATON Crouse-Hinds Condulet Conduit Outlet Box, Type X Dust-Ignitionproof Explosionproof Raintight, Series: GUA, 3/4 in, 3 in Cover Opening Size, 13.5 cu-in Capacity, For Use With: Rigid Conduits, Pad Mount, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 3-1/2 in W x 1-7/8 in D x 3-1/2 in H
Attributes
Documents
Applications
Features
Attributes
Capacity13.5 cu-in
Country of OriginUS
Dimensions3-1/2 in W x 1-7/8 in D x 3-1/2 in H
FinishAluminum Acrylic Painted/Electro-Galvanized
GTIN782274000000
Length5.25 inch
ManufacturerEaton
MaterialFeraloy Iron Alloy
Mounting TypePad
NEMA Rating3|4|7|9
Size3/4 in
Suitable For Use WithRigid Conduits
Trade Size3/4 inch
TypeType X Dust-Ignitionproof Explosionproof Raintight
Documents
Applications
Industrial Facilities, Factories and Wet Locations
Features
- Neoprene O-ring standard to meet NEMA 4 requirements
- Cast ears on cover to permit easy removal and tightening
- Internal green ground screw
- Threaded cover openings
- Ten different hub arrangements
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Surface covers furnished with box
- Cover threads are 12 pitch standard, 16 pitch ON select aluminum shapes and sizes
- Act as pull and splice boxes
- Connect lengths of conduit
- Change direction of conduit
- Provide access to conductors for maintenance and future system changes
- Act as mounting outlets for fixtures
- Act as sealing fittings
- (4) side cable entrys
