Bussmann Series JJS-80

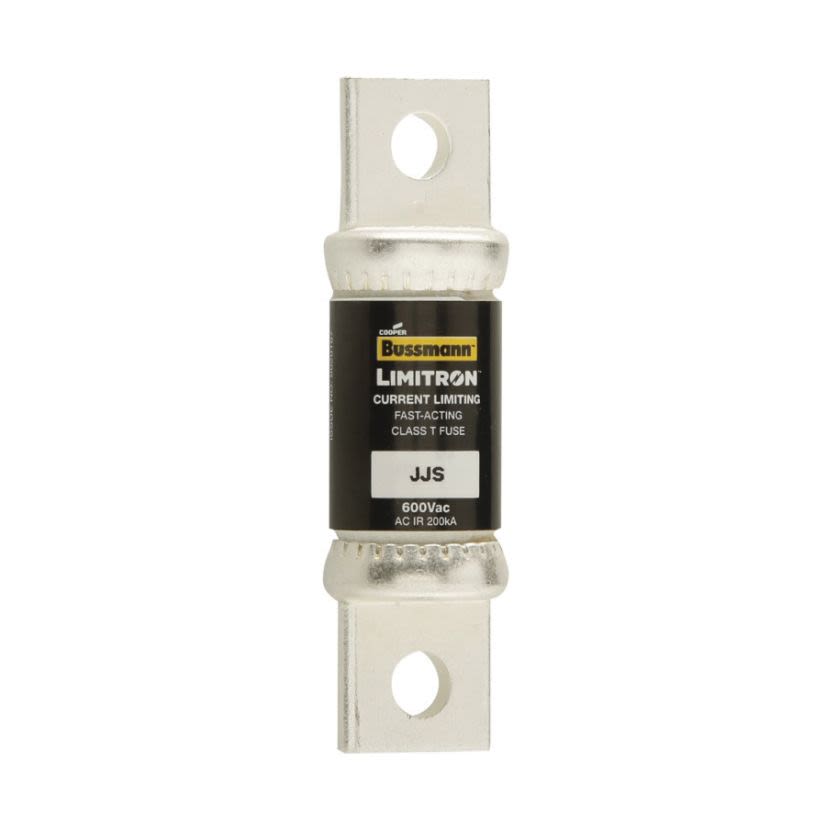

Bussmann Limitron Tron JJS-80 Current Limiting Very Fast Acting Fuse, 80 A, 600 V, 200 kAIC Interrupt, T Class, Cartridge Body
Bussmann Series JJS-80
Bussmann Limitron Tron JJS-80 Current Limiting Very Fast Acting Fuse, 80 A, 600 V, 200 kAIC Interrupt, T Class, Cartridge BodyIn Stock: 1more info
|
BrandBussmann Series
MFG #JJS-80
Werner Part #22423
UPC051712628808
In Stock: 1more info
|
BrandBussmann Series
MFG #JJS-80
Werner Part #22423
UPC051712628808
Product Description
Bussmann Limitron Tron Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 80 A, 600 V, 200 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 0.75 in Dia x 2.95 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size0.75 in Dia x 2.95 in L
Body TypeCartridge
ClassT
Country of OriginMX
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kAIC
ManufacturerEaton
MaterialMelamine
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
SeriesJJS
Terminal TypeBolted Blade End
Type / StyleCurrent Limiting
Voltage Rating600 V
Applications
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks and VFD Line Protection Applications
Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for today's large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
