Bussmann Series KTU-800

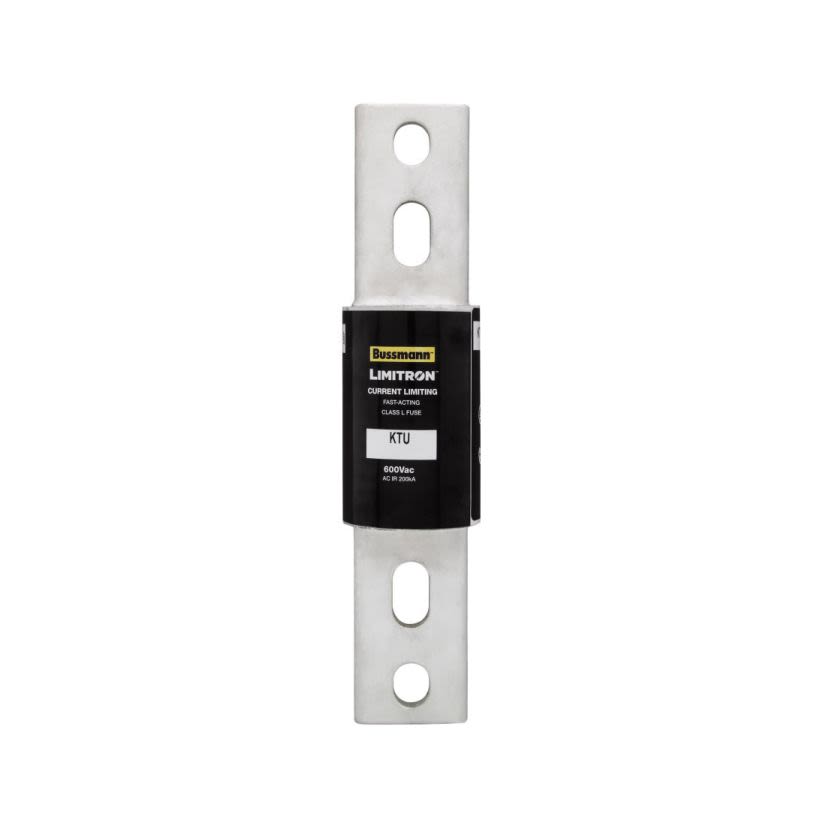

Bussmann Limitron KTU-800 Current Limiting Fast Acting Fuse, 800 A, 600 V, 200 kAIC Interrupt, L Class, Cartridge Body
Bussmann Series KTU-800
Bussmann Limitron KTU-800 Current Limiting Fast Acting Fuse, 800 A, 600 V, 200 kAIC Interrupt, L Class, Cartridge BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #KTU-800
Werner Part #654106
UPC051712613088
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #KTU-800
Werner Part #654106
UPC051712613088
Product Description
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: KTU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 800 A, 600 V, 200 kAIC Interrupt, Class: L, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Single Element, Melamine Glass Tube, 2.5 in Dia x 8.63 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size2.5 in Dia x 8.63 in L
Body TypeCartridge
ClassL
Country of OriginMX
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kAIC
ManufacturerEaton
MaterialMelamine Glass Tube
Mounting TypeBolted-On
Rejection/Non-RejectionNon-Rejection
SeriesKTU
Terminal TypeBolted Blade End
Type / StyleCurrent Limiting
Voltage Rating600 V
Documents
Applications
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards and Power Panelboards Applications
Features
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
- 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Silver plated end bell
