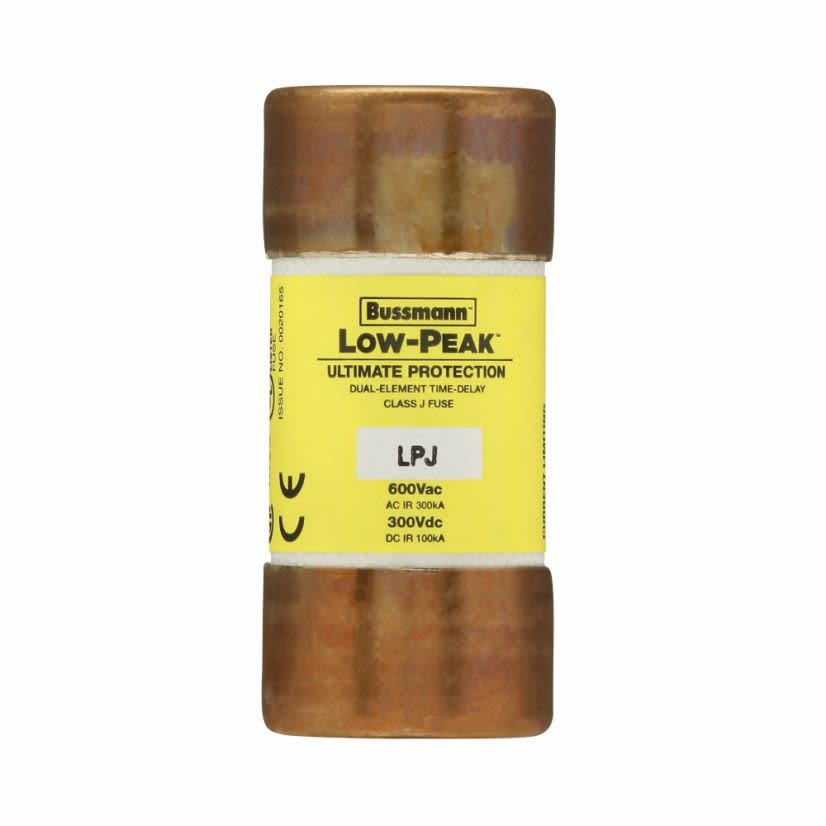

Bussmann Series LPJ-35SP
Bussmann LPJ-35SP LPJ Current Limiting Time Delay Fuse, 35 A, 600 V AC/300 V DC, 300/100 kA Interrupt, Class: J, Cylindrical Body
Bussmann Series LPJ-35SP
Bussmann LPJ-35SP LPJ Current Limiting Time Delay Fuse, 35 A, 600 V AC/300 V DC, 300/100 kA Interrupt, Class: J, Cylindrical BodyIn Stock: 54more info
|
BrandBussmann Series
MFG #LPJ-35SP
Werner Part #22663
UPC051712523325
In Stock: 54more info
|
BrandBussmann Series
MFG #LPJ-35SP
Werner Part #22663
UPC051712523325
Product Description
Bussmann, LPJ-35SP, Time Delay Fuse, Current Limiting, Series: LPJ, Non-Indicating, Non-Rejection, 35 A, 600 V AC/300 V DC, 300/100 kA Interrupt, Class: J, 10 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Dual Element, Melamine, 1.06 in Dia x 2.38 in L Body
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size1.06 in Dia x 2.38 in L
Body TypeCylindrical
ClassJ
Country of OriginMX
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating300/100 kA
ManufacturerEaton
MaterialMelamine
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
Response Time10 s
SeriesLPJ
Terminal TypeFerrule
Type / StyleCurrent Limiting
Voltage Rating600 V AC/300 V DC
Documents
Applications
Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects and Power Panelboard Applications
Features
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Long time delay minimizes needless fuse openings due to temporary overloads and transient surges
- Dual element fuses have lower resistance than ordinary fuses, hence they run cooler
- They can often be sized for back up protection against motor burnout from overload or single phasing if other overload protective devices fail
- Selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- 300 kA at 600 VAC, 100 kA at 300 VDC interrupt rating
- 10 s at 500% of rated current response time
- Industry's only UL listed and CSA Certified fuse with a 300 ka interrupt rating that allows for simple, worry free installation in virtually any application
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Current limitation protects down stream components against damaging thermal and magnetic effects of short circuit currents
- Proper sizing can provide No Damage type 2 coordinated protection for NEMA and IEC motor controllers
- Space saving package for equipment down sizing
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|CSA C22.2 No. 248.8, Class 1422-02 File No. 53787|UL Guide No. JDDZ|UL File No. E4273|Guide No. JFHR|UL File No. E56412
