Bussmann Series CHM2DIU

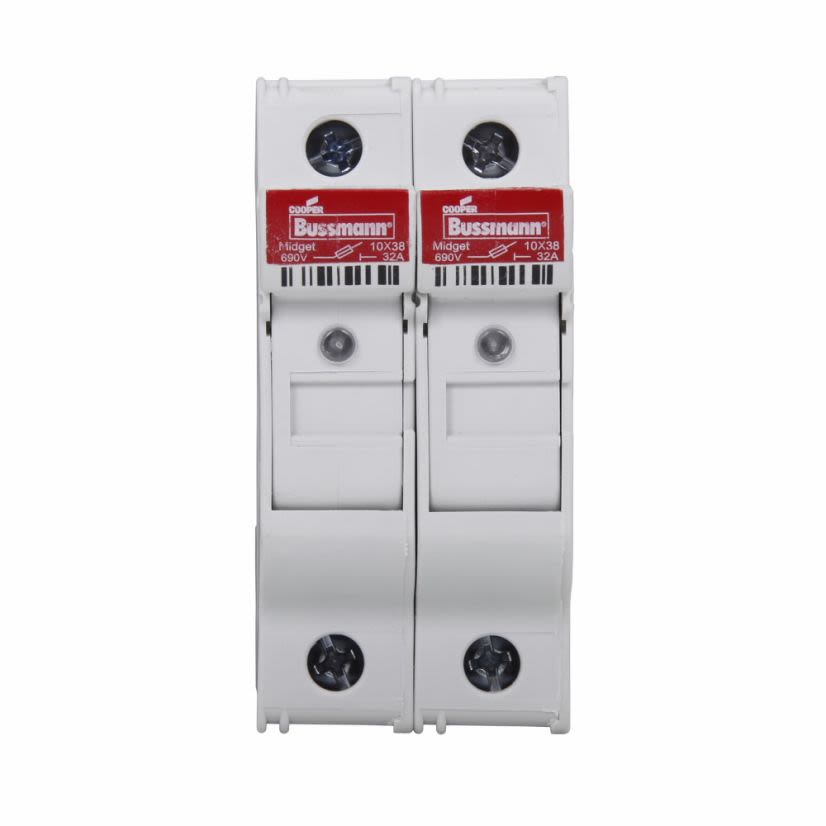

Edison CHM2DIU CH Series Modular Fuse Holder With Indicator, 600/690 V, 30/32 A, 18 to 4 AWG Wire, 2 Poles
Bussmann Series CHM2DIU
Edison CHM2DIU CH Series Modular Fuse Holder With Indicator, 600/690 V, 30/32 A, 18 to 4 AWG Wire, 2 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Edison Fuse Holder, Modular, Series: CH Series, 600/690 V, 30/32 A, 2 Poles, Class: CC/Midget, 18 to 4 AWG Wire, DIN Rail Mounting, 38 mm Fuse Length, 10 mm Diameter Fuse, -20 to 90 deg C, For Use With: FNQ, KLM, FNM, KTK, BAF, FWA, DCM, C10, AGU, BAN and FWC Series 10 x 38 mm Midget Fuse, 2.909 in H x 1.378 in W x 3.275 in D Dimensions
Attributes
Documents
Features
Attributes
ClassCC/Midget
Country of OriginSri Lanka
Dimensions2.909 in H x 1.378 in W x 3.275 in D
Fuse Diameter10 mm
Fuse Length38 mm
ManufacturerEaton
Mounting TypeDIN Rail
Number of Poles2
SeriesCH Series
Size of Wire18 to 4 AWG
Suitable For Use WithFNQ, KLM, FNM, KTK, BAF, FWA, DCM, C10, AGU, BAN and FWC Series 10 x 38 mm Midget Fuse
Temperature Rating-20 to 90 deg C
Type / StyleModular
Voltage Rating600/690 V
Features
- Enhanced safety with IP20 finger safe construction
- Wiring flexibility with terminals rated for use with 75 deg C or 90 deg C solid, stranded and fine stranded wire and spade terminals and comb busbars
- Complete range of UL Listed and high SCCR rated 1 and 3-phase finger safe comb-bus bars and power feed lugs
- 600 V (UL), 690 V (IEC) voltage rating
- 30 A (UL), 32 A (IEC) amperage rating
