Bussmann Series RDF30J-3

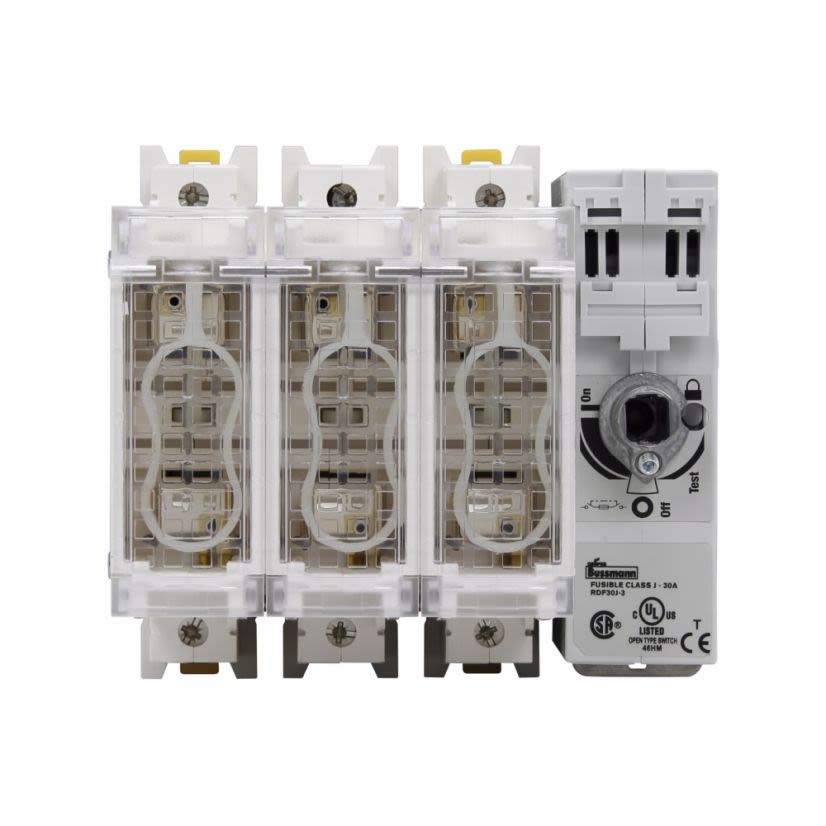

EATON Bussmann Edison RDF30J-3 Fused Disconnect Switch, 600 VAC, 250 VDC, 30 A, 20 hp, 5 hp, 3 Poles
Bussmann Series RDF30J-3
EATON Bussmann Edison RDF30J-3 Fused Disconnect Switch, 600 VAC, 250 VDC, 30 A, 20 hp, 5 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Bussmann Edison Disconnect Switch, Fused, Series: RDF, 600 VAC, 250 VDC, 30 A, 20 hp, 5 hp, 3 Pole, 200 kA Short Circuit, Rotary Actuator, Panel Mounting, Lug Terminal, -20 to 70 deg C, 5.71 in W x 4.14 in D x 5.36 in H Dimensions
Attributes
Documents
Applications
Included
Features
Attributes
Actuator TypeRotary
Country of OriginFR
Dimensions5.71 in W x 4.14 in D x 5.36 in H
Horsepower20 hp, 5 hp
ManufacturerEaton
Number of Poles3
SeriesRDF
Short Circuit Current Rating200 kA
Suitable For Use WithAll Switches (Expect 30 to 100 A General Duty Safety Switch)
Temperature Rating-20 to 70 deg C
Terminal TypeLug
TypeFused
Type / StyleFused
Voltage600 VAC, 250 VDC
Documents
Applications
Stationary Machinery Equipment in Factory and Robotics Applications
Included
Trim Cover
Features
- Make and break power under load
- Double break by pole
- Front/side handle operation
- Class J fuse
- 14 to 10 AWG (solid) and 14 to 6 AWG (stranded) wire
- 10000 endurances/cycles
- UL 94-V-0 flammability
- Fingersafe covers
- Defeatable handles automatically re-latch when the panel door is closed
- Standard switch
