Bussmann Series RDF30CC-3

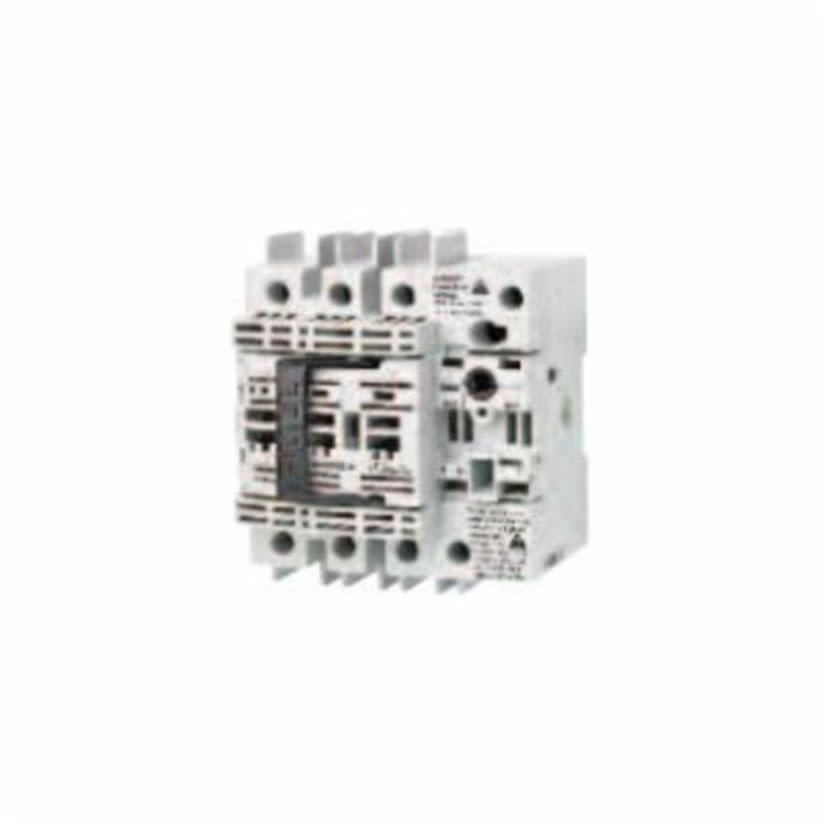

EATON Bussmann Edison RDF30CC-3 Fused Disconnect Switch, 600 V AC, 30 A, 20 hp, 3 Poles
Bussmann Series RDF30CC-3
EATON Bussmann Edison RDF30CC-3 Fused Disconnect Switch, 600 V AC, 30 A, 20 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Bussmann Edison Disconnect Switch, Fused, Series: RDF, 600 V AC, 30 A, 20 hp, 3 Pole, 100 kA Short Circuit, Rotary Actuator, Panel Mounting, Lug Terminal, -20 to 70 deg C, 3.81 in W x 3.3 in D x 4.56 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator TypePivot/Toggle Handle
Connection TypeLine/Load Lug
Country of OriginSri Lanka
Dimensions3.81 in W x 3.3 in D x 4.56 in H
FrameE150
Frequency Rating50/60 Hz
Horsepower20 hp
Interrupt Rating25 kA
ManufacturerEaton
MaterialPlastic
Number of Poles3
Phase1
SeriesRDF
Short Circuit Current Rating100 kA
Size of Wire4 to 3 AWG
Temperature Rating-20 to 70 deg C
Terminal TypeLug
Trip TypeLI/Non-Interchangeable Thermal Magnetic
TypeFused
Type / StyleFused
Voltage600 VAC
Documents
Applications
Stationary Machinery Equipment in Factory and Robotics Applications
Features
- Make and break power under load
- Double break by pole
- Front handle operation
- Class CC fuse
- 14 to 10 AWG (solid) and 14 to 10 AWG (stranded) wire
- 10000 endurances/cycles
- Fingersafe covers
- Defeatable handles automatically re-latch when the panel door is closed
- Compact switch
