Bussmann Series RDF200J-3

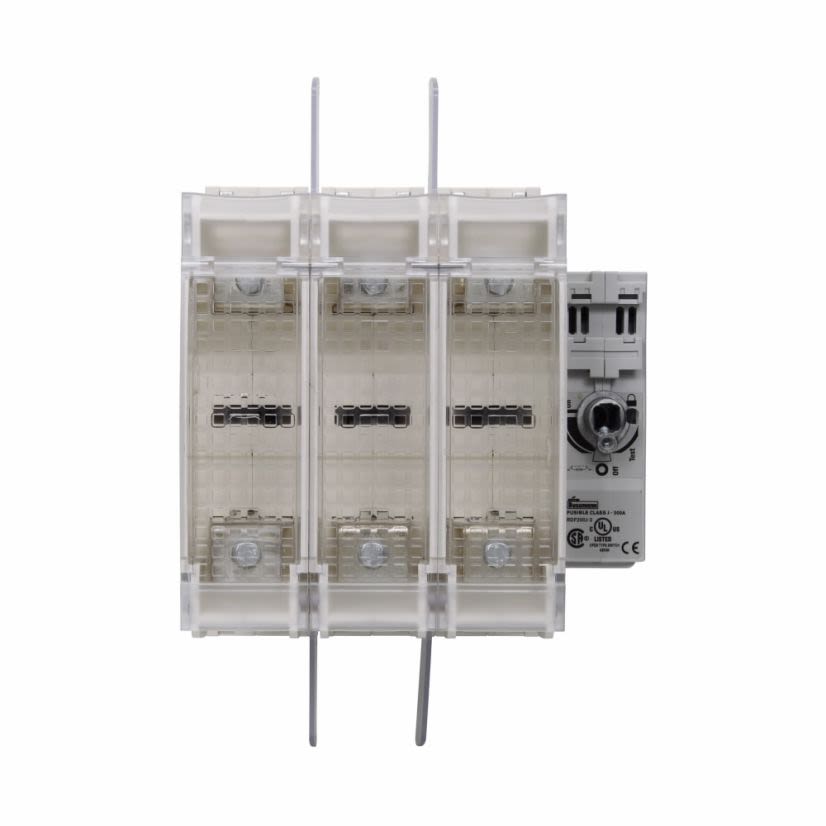

EATON Bussmann Edison RDF200J-3 Fused Disconnect Switch, 600 V AC, 200 A, 150 hp, 3 Poles
Bussmann Series RDF200J-3
EATON Bussmann Edison RDF200J-3 Fused Disconnect Switch, 600 V AC, 200 A, 150 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Bussmann Edison Disconnect Switch, Fused, Series: RDF, 600 V AC, 200 A, 150 hp, 3 Pole, 200 kA Short Circuit, Rotary Actuator, Panel Mounting, Lug Terminal, -20 to 70 deg C, 7-1/2 in W x 5 in D x 11-1/2 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator TypeRotary
Country of OriginSri Lanka
Dimensions7-1/2 in W x 5 in D x 11-1/2 in H
Horsepower150 hp
ManufacturerEaton
Number of Poles3
SeriesRDF
Short Circuit Current Rating200 kA
Suitable For Use WithED Frame Breakers
Temperature Rating-20 to 70 deg C
Terminal TypeLug
TypeFused
Type / StyleFused
Voltage600 VAC
Documents
Applications
Stationary Machinery Equipment in Factory and Robotics Applications
Features
- Make and break power under load
- Double break by pole
- Front/side handle operation, flange
- Class J fuse
- 6 to 300 mcm (stranded) wire
- 8000 endurances/cycles
- Fingersafe covers
- Defeatable handles automatically re-latch when the panel door is closed
- Standard switch
