Bussmann Series RDF100J-3

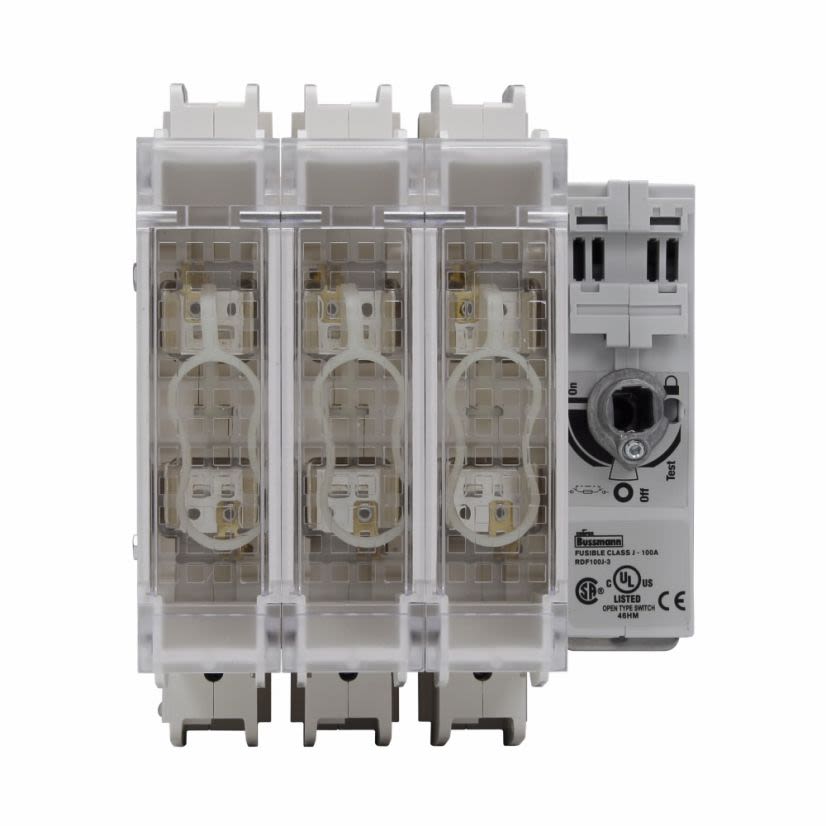

EATON Bussmann Edison RDF100J-3 Fused Disconnect Switch, 600 VAC, 250 VDC, 100 A, 20 hp, 75 hp, 3 Poles
Bussmann Series RDF100J-3
EATON Bussmann Edison RDF100J-3 Fused Disconnect Switch, 600 VAC, 250 VDC, 100 A, 20 hp, 75 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Bussmann Edison Disconnect Switch, Fused, Series: RDF, 600 VAC, 250 VDC, 100 A, 20 hp, 75 hp, 3 Pole, 200 kA Short Circuit, Rotary Actuator, Panel Mounting, Lug Terminal, -20 to 70 deg C, 5.8 in W x 4-3/4 in D x 7-1/2 in H Dimensions
Attributes
Documents
Applications
Included
Features
Attributes
Actuator TypeRotary
ColorBlack
Country of OriginFR
Dimensions5.8 in W x 4-3/4 in D x 7-1/2 in H
FinishTin Coated
Horsepower20 hp, 75 hp
ManufacturerEaton
MaterialPolycarbonate
Number of Poles3
Primary Connection/Pole2
Secondary Connection/Pole8
SeriesRDF
Short Circuit Current Rating200 kA
Size of Wire14 to 2/0 AWG, 14 to 2 AWG
Temperature Rating-20 to 70 deg C
Terminal TypeLug
TypeFused
Type / StyleFused
Voltage600 VAC, 250 VDC
Documents
Applications
Stationary Machinery Equipment in Factory and Robotics Applications
Included
Trim Cover
Features
- Make and break power under load
- Double break by pole
- Front/side handle operation, flange
- Class J fuse
- 12 to 10 AWG (solid) and 12 to 1 AWG (stranded) wire
- 10000 endurances/cycles
- UL 94-V-0 flammability
- Fingersafe covers
- Defeatable handles automatically re-latch when the panel door is closed
- Standard switch
