Bussmann Series RD25-3-508

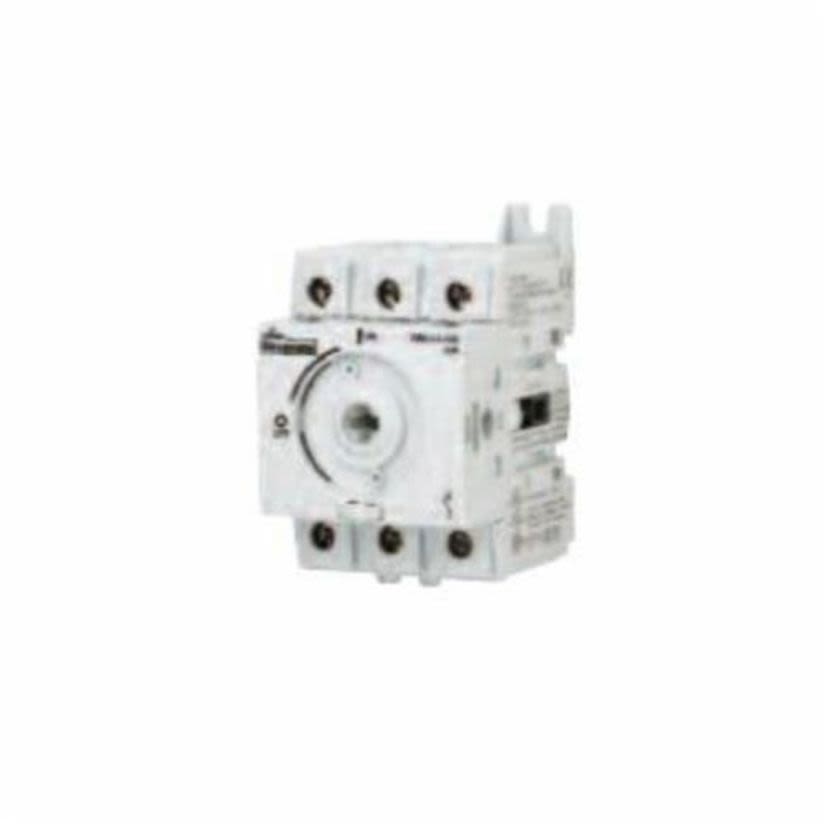

EATON Bussmann Edison RD25-3-508 Non-Fused Disconnect Switch, 600 V AC, 25 A, 20 hp, 3 Poles
Bussmann Series RD25-3-508
EATON Bussmann Edison RD25-3-508 Non-Fused Disconnect Switch, 600 V AC, 25 A, 20 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Bussmann Edison Disconnect Switch, Non-Fused, Series: RD, 600 V AC, 25 A, 20 hp, 3 Pole, 65 kA Short Circuit, Rotary Actuator, Panel Mounting, Lug Terminal, -20 to 70 deg C, 1.77 in W x 2.95 in D x 4.33 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator TypeRotary
Country of OriginSri Lanka
Dimensions1.77 in W x 2.95 in D x 4.33 in H
Enclosure TypeNEMA 4X
Horsepower20 hp
ManufacturerEaton
Material304 Stainless Steel
Number of Poles3
Number of Wires6
Phase3 ph
SeriesRD Series
Short Circuit Current Rating65 kA
Temperature Rating-20 to 70 deg C
Terminal TypeLug
TypeNon-Fused
Type / StyleNon-Fused
Voltage600 VAC
Documents
Applications
Stationary Machinery Equipment in Factory and Robotics Applications
Features
- Suitable as motor disconnect
- Front/side handle operation
- Class J fuse
- 14 to 10 AWG, 12 AWG (solid) and 14 to 4 AWG, 14 to 12 AWG (stranded) wire
- 10000 endurances/cycles
- UL 94-V-0 flammability
- Fingersafe covers
