Bussmann Series ER4P-200N3PB

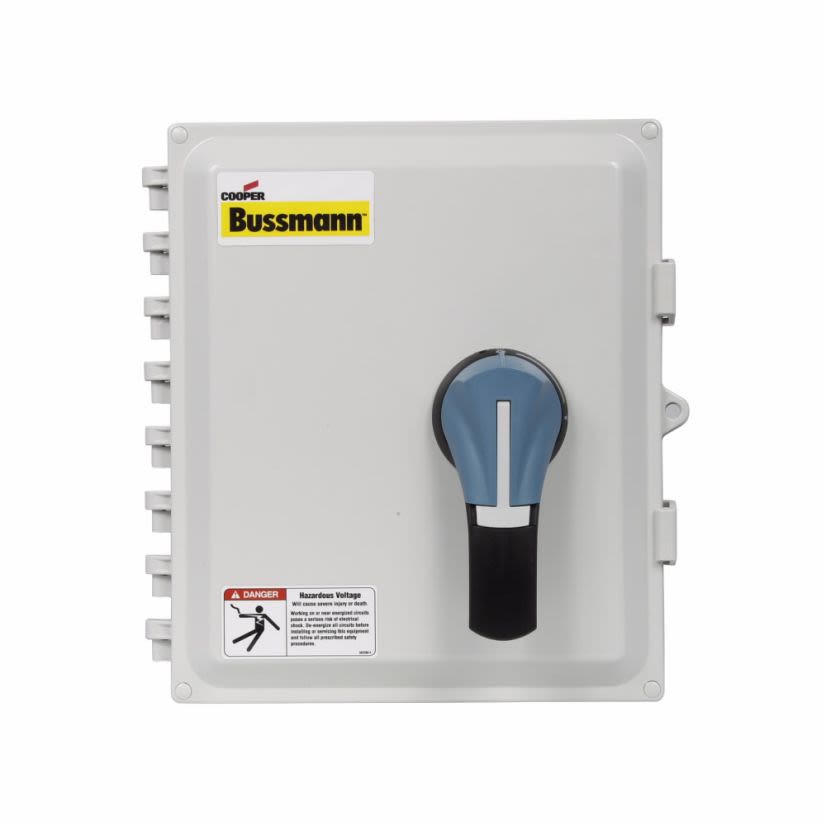

Edison ER4P-200N3PB Non-Fused Enclosed Disconnect Switch, 600 V AC, 200 A, 3 Poles
Bussmann Series ER4P-200N3PB
Edison ER4P-200N3PB Non-Fused Enclosed Disconnect Switch, 600 V AC, 200 A, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Edison Enclosed Disconnect Switch, Non-Fused, 600 V AC, 200 A, 3 Pole, 200 kA Short Circuit, Rotary Pistol Handle Actuator, NEMA 4P, Lug Terminal, -20 to 70 deg C, 12 in L x 7-1/2 in W x 12-1/4 in H, Plastic
Attributes
Documents
Applications
Features
Attributes
Actuator TypeRotary Pistol Handle
Connection TypeImperial Line/Load
Country of OriginUS
Dimensions12 in L x 7-1/2 in W x 12-1/4 in H
Enclosure TypeNEMA 4P
FrameNG
ManufacturerEaton
MaterialPlastic
Number of Poles3
SeriesG Series
Short Circuit Current Rating200 kA
Temperature Rating-20 to 70 deg C
Terminal TypeLug
TypeNon-Fused
Type / StyleNon-Fused
Voltage600 VAC
Documents
Applications
For general purpose, main disconnect, branch circuit protection or service entrance up to 600 VAC/VDC
Features
- Multiple field installed accessories enhance the enclosed disconnect switches to fit the desired application
- Up to three 1/4 in shank padlocks can be installed ON external handles
