Bussmann Series ER4P-63N3PB

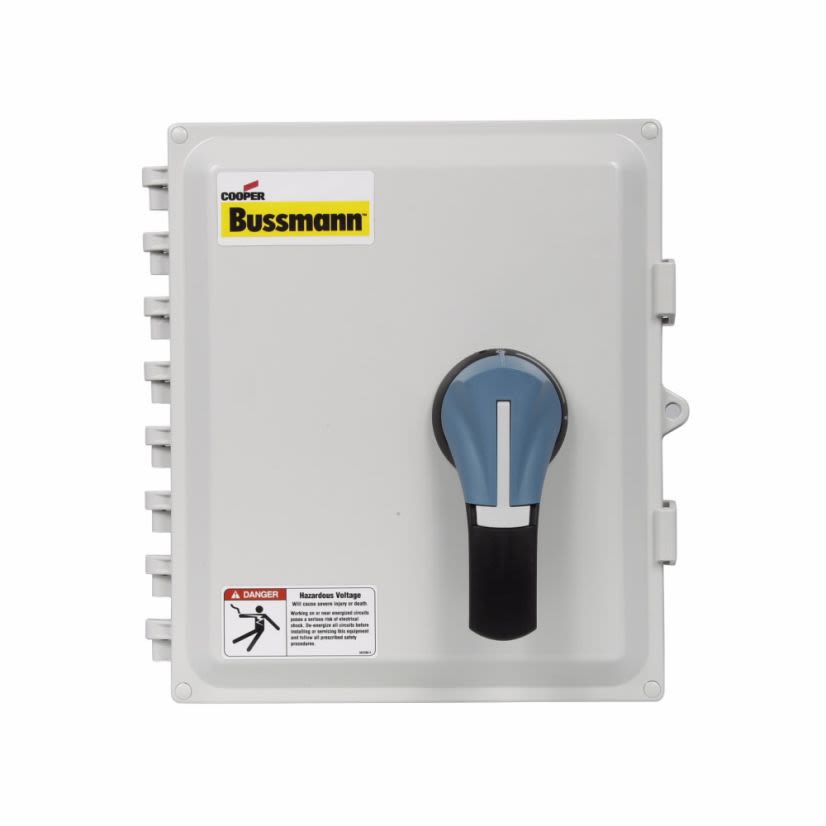

Bussmann ER4P-63N3PB Non-Fused Enclosed Rotary Disconnect Switch, 600 V AC, 63 A, 40 hp, 3 Poles
Bussmann Series ER4P-63N3PB
Bussmann ER4P-63N3PB Non-Fused Enclosed Rotary Disconnect Switch, 600 V AC, 63 A, 40 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #ER4P-63N3PB
Werner Part #4074382
UPC051712487917
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #ER4P-63N3PB
Werner Part #4074382
UPC051712487917
Product Description
Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 V AC, 63 A, 40 hp, 3 Pole, 65 kA/60 A to 50 kA/100 A Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 4P, -20 to 70 deg C, 8.7 in W x 5.8 in D x 7.4 in H, Polycarbonate
Attributes
Documents
Applications
Features
Attributes
Actuator TypeBlack Pistol Handle
Country of OriginUS
Dimensions8.7 in W x 5.8 in D x 7.4 in H
Enclosure TypeNEMA 4P
Horsepower40 hp
ManufacturerEaton
MaterialPolycarbonate
Number of Poles3
SeriesER
Short Circuit Current Rating65 kA/60 A to 50 kA/100 A
Suitable For Use WithTEB and TED Frame 15 to 150 A Circuit Breaker
Temperature Rating-20 to 70 deg C
TypeNon-Fused
Type / StyleNon-Fused
Voltage600 VAC
Applications
Motor Disconnect, Stationary Machine Equipment in Factory and Robotics Applications
Features
- Multiple field installed accessories enhance the enclosed disconnect switches to fit the desired application
- Lockout/tagout up to three 1/4 in shank padlocks can be installed on external handles
