Bussmann Series ER4P-60N3PB

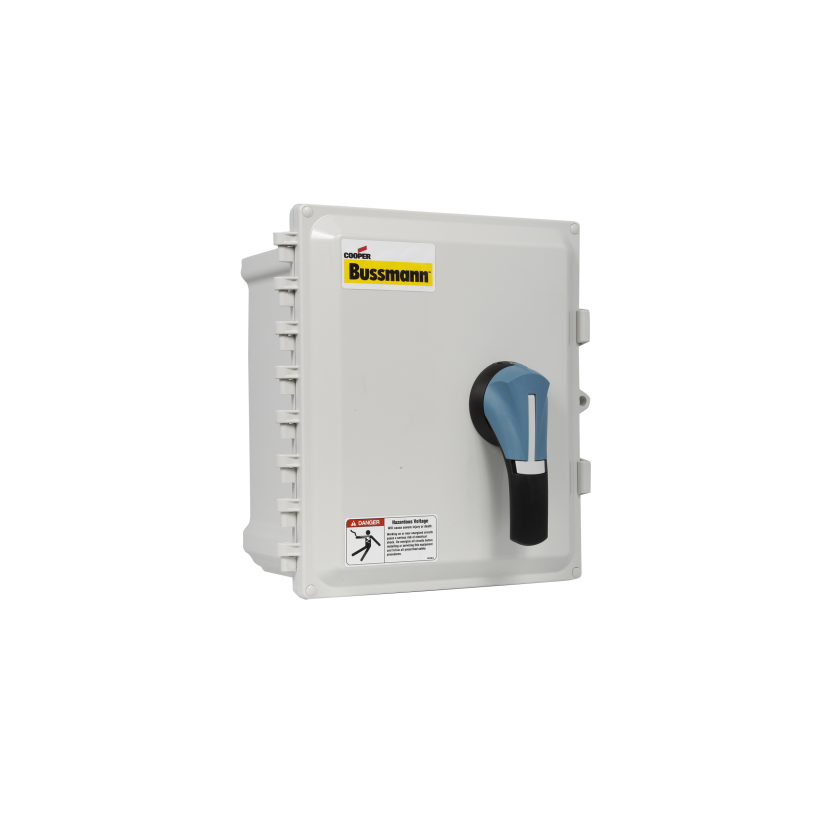

Bussmann ER4P-60N3PB Non-Fused Enclosed Rotary Disconnect Switch, 600 V AC, 60 A, 50 hp, 3 Poles
Bussmann Series ER4P-60N3PB
Bussmann ER4P-60N3PB Non-Fused Enclosed Rotary Disconnect Switch, 600 V AC, 60 A, 50 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #ER4P-60N3PB
Werner Part #4028340
UPC051712488273
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #ER4P-60N3PB
Werner Part #4028340
UPC051712488273
Product Description
Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 V AC, 60 A, 50 hp, 3 Pole, 100 kA Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 4P, -20 to 70 deg C, 7-1/2 in W x 12 in D x 12-1/4 in H, Polycarbonate
Attributes
Documents
Applications
Features
Attributes
ColorBlack
Country of OriginUS
Dimensions7-1/2 in W x 12 in D x 12-1/4 in H
Enclosure TypeNEMA 4P
FinishTin Plated
Horsepower50 hp
ManufacturerEaton
MaterialPolycarbonate
Number of Poles3
Primary Connection/Pole1
Secondary Connection/Pole12
SeriesER
Short Circuit Current Rating100 kA
Size of Wire6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load
Temperature Rating-20 to 70 deg C
TypeNon-Fused
Type / StyleNon-Fused
Voltage600 VAC
Applications
Stationary Machine Equipment in Factory and Robotics Applications
Features
- Multiple field installed accessories enhance the enclosed disconnect switches to fit the desired application
- Lockout/tagout up to three 1/4 in shank padlocks can be installed on external handles
