Bussmann Series PDBFS204

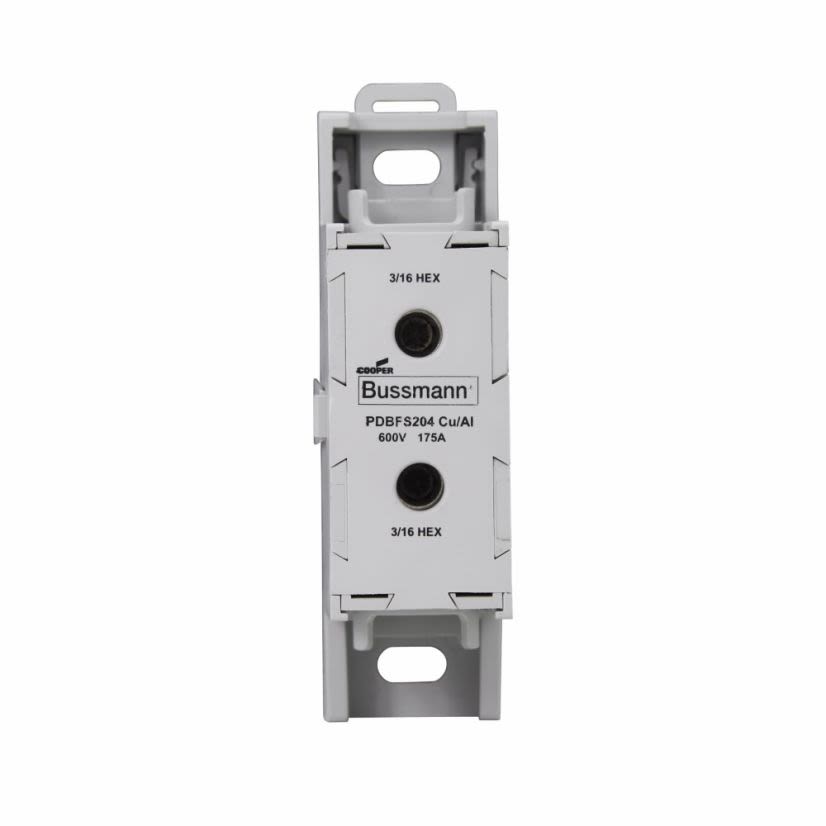

Bussmann PDBFS204 Power Distribution Block, 600 V AC/DC, 175 A, 1 Pole, 6 AWG to 500 kcmil Wire, Aluminum
Bussmann Series PDBFS204
Bussmann PDBFS204 Power Distribution Block, 600 V AC/DC, 175 A, 1 Pole, 6 AWG to 500 kcmil Wire, AluminumNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #PDBFS204
Werner Part #3761705
UPC051712659802
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #PDBFS204
Werner Part #3761705
UPC051712659802
Product Description
Bussmann Power Distribution Block, Series: PDBFS, 600 V AC/DC, 175 A, 1 Pole, 6 AWG to 500 kcmil Wire, 200 kA Short Circuit Current, Aluminum, Tin Plated, 3.72 in L x 1.03 in W x 2.146 in H
Attributes
Documents
Applications
Features
Attributes
Actuator TypeHandle
Connection TypeCable-In/Cable-Out
Country of OriginMX
Dimensions3.72 in L x 1.03 in W x 2.146 in H
FinishTin Plated
Frame100
Frequency Rating50/60 Hz
Interrupt Rating14 kA
ManufacturerEaton
MaterialAluminum
Mounting TypeDIN Rail
Number of Poles1
Phase3
SeriesPDBFS
Short Circuit Current Rating200 kA
Size of Wire14 to 6 AWG, 12 to 6 AWG
Temperature Rating40 deg C
Trip TypeThermal/Magnetic
TypeType CQD Low Voltage
Type / StyleFinger Safe
Voltage600 VAC/VDC
Applications
Electrical Assemblies, Panels and EOEMs Applications
Features
- IP20 finger safe under specified conditions increases safety by isolating energized connections
- Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installations
- Sliding DIN rail latch provides easy block mounting
- For multiple pole applications, all single pole units can be gang mounted by using the interlocking dovetail pins that are pre-installed on the side of the blocks
- Elongated panel mounting holes provide greater flexibility and installations ease when matching up with drilled panel holes
