BURNDY TP108F

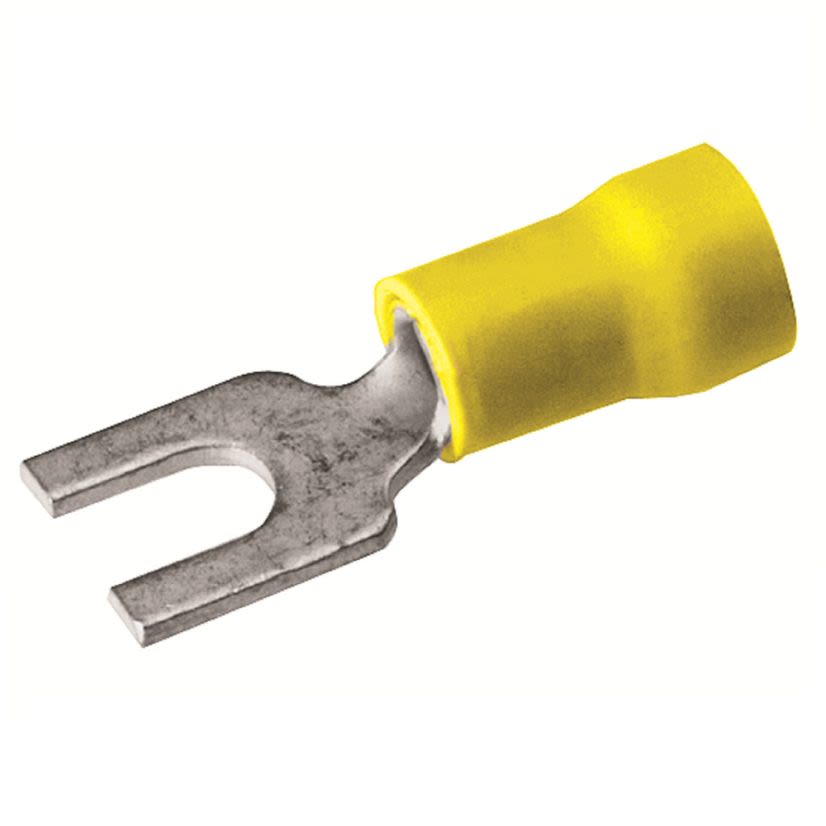

BURNDY VINYLUG TP108F Type TP-F Smooth Entry Fork Tongue Terminal, 12 to 10 AWG Conductor, 0.98 in L, Copper, Yellow
BURNDY TP108F
BURNDY VINYLUG TP108F Type TP-F Smooth Entry Fork Tongue Terminal, 12 to 10 AWG Conductor, 0.98 in L, Copper, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
BURNDY VINYLUG Fork Tongue Terminal, Type TP-F Smooth Entry, Stranded Copper Conductor, 12 to 10 AWG Conductor, #6 to #8 Stud, 0.98 in Length, 0.26 in ID x 0.34 in L Barrel, Brazed Fork Tongue, 0.31 in W Tongue, 600 V AC, Specifications: 19/64 in L Wire Strip, PVC Insulation, 105 deg C, Copper, Electro-Zinc Plated, Yellow, 0.04 in THK
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.26 in ID x 0.34 in L
ColorYellow
Conductor size12 to 10 AWG
Conductor TypeStranded Copper
Country of OriginUS
Dimensions0.04 in THK
FinishElectro-Zinc Plated
ManufacturerHubbell
MaterialCopper
Stud Size#6 to #8
Temperature Rating105 deg C
Tongue Size0.31 in W
Tongue TypeBrazed Fork
TypeType TP-F Smooth Entry
Type / StyleType TP-F Smooth Entry
Voltage Rating600 V AC
Documents
Applications
Commercial, Light Duty Industrial Control and Power Circuit
Features
- Fork terminals are constructed of pure electrolytic copper
- Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
- Fork tongue design for faster installation - screw only needs to be loosened for termination
- Two or more terminals can be stacked on a common stud
- Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Electro-tin plating for durable, long lasting corrosion resistance
- Inspection hole/skive provides an easy visual check of proper wire insertion
Specifications
19/64 in L Wire Strip, PVC Insulation
