Blackburn CTL2-14

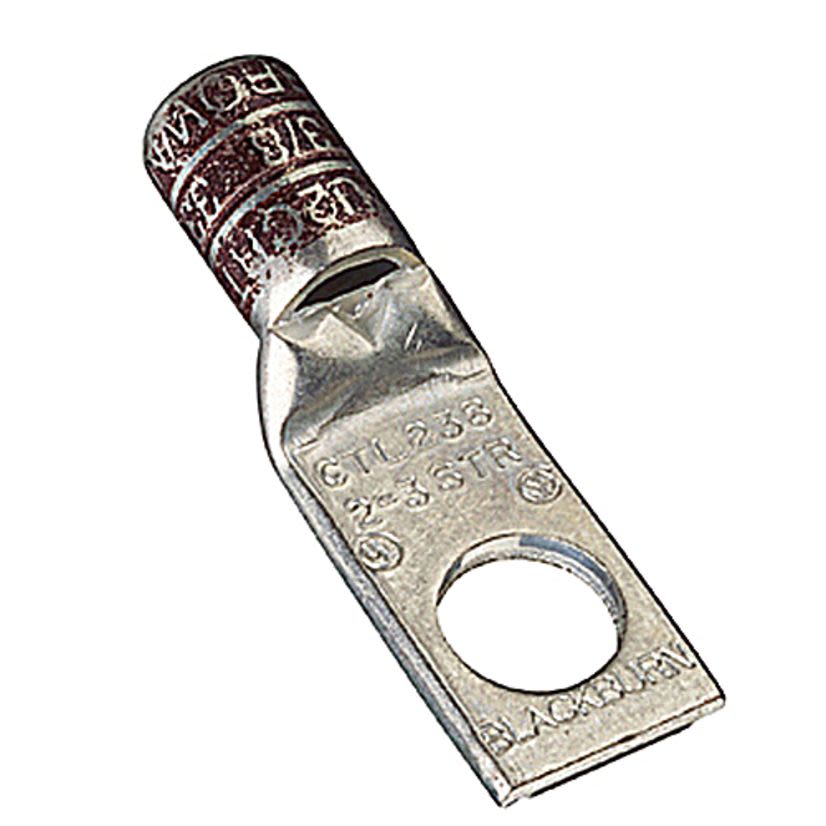

Color-Keyed CTL2-14 1-Hole Compression Lug, 2 AWG Flexible/Stranded Copper Conductor, 1/4 in Stud, Copper
Blackburn CTL2-14
Color-Keyed CTL2-14 1-Hole Compression Lug, 2 AWG Flexible/Stranded Copper Conductor, 1/4 in Stud, CopperNon-stock product. Available to order - lead time may vary.
BrandBlackburn
MFG #CTL2-14
Werner Part #17597
UPC783786131761
Non-stock product. Available to order - lead time may vary.
BrandBlackburn
MFG #CTL2-14
Werner Part #17597
UPC783786131761
Product Description
Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 2 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 21/32 in L x 9/16 in W x 3/32 in THK Tongue, 1-1/2 in Overall Length, Short/Standard Barrel, 19/32 in L Barrel, Specifications: Tin Plated, Copper, Brown
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size19/32 in L
Barrel TypeShort/Standard
ColorBrown
Conductor size2 AWG
Conductor TypeFlexible/Stranded Copper
Country of OriginMX
ManufacturerABB
MaterialCopper
Overall Length1-1/2 in
Package TypeEACH
SeriesCTL
Stud Size1/4 in
Tongue Size21/32 in L x 9/16 in W x 3/32 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Applications
Confined Areas, Industrial and Building Applications
Features
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
Specifications
Tin Plated
