Appleton HUB150DN

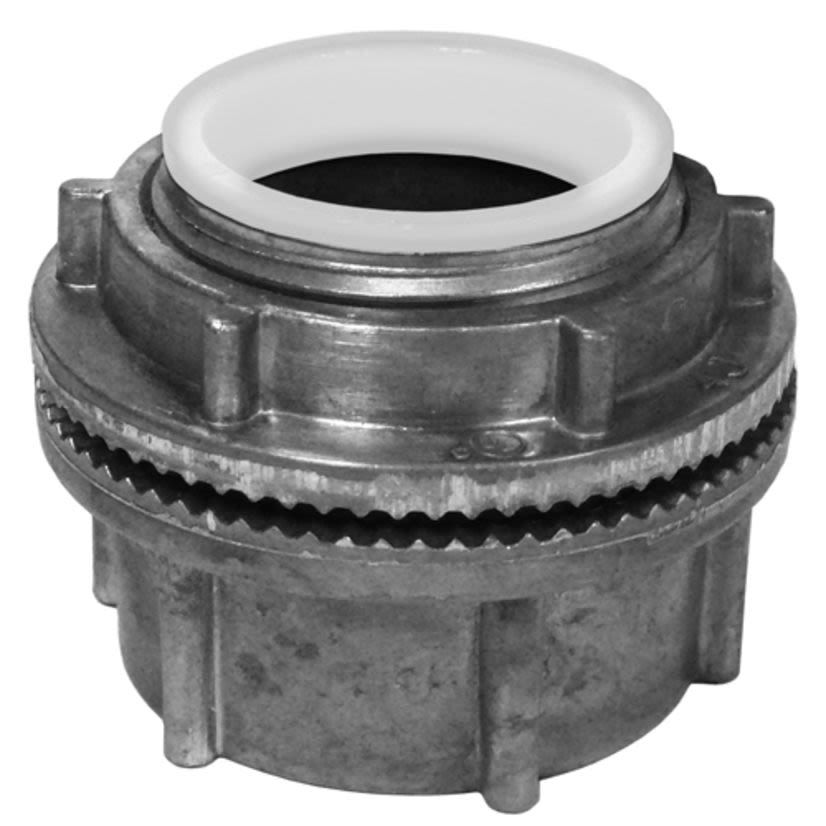

Appleton NEER HUB150DN Watertight Conduit Hub, 1-1/2 in, For Use With IMC/Rigid Conduit, Die Cast Zinc
Appleton HUB150DN
Appleton NEER HUB150DN Watertight Conduit Hub, 1-1/2 in, For Use With IMC/Rigid Conduit, Die Cast ZincIn Stock: 104more info
|
BrandAppleton
MFG #HUB150DN
Werner Part #3863989
UPC687855002153
In Stock: 104more info
|
BrandAppleton
MFG #HUB150DN
Werner Part #3863989
UPC687855002153
Product Description
Appleton NEER Watertight Conduit Hub, Series: HUB, 1-1/2 in, For Use With: IMC/Rigid Conduit, Die Cast Zinc, 2.75 in OD x 1.9 in L
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginIN
Dimensions2.75 in OD x 1.9 in L
GTIN00687855002153
ManufacturerEmerson Electric
MaterialDie Cast Zinc
Size1-1/2 in
Suitable For Use WithIMC/Rigid Conduit
Type / StyleWatertight Hubs
Documents
Applications
Used to connect rigid or IMC conduit to a threadless opening in an enclosure
Features
- Rugged metallic construction ensures mechanical protection
- Insulated throat, rated up to 221 deg F, prevents wire abrasion
- Integral O-ring provides watertight seal
- Unique profile permits easy wrenching
- Smooth, accurately tapped threads facilitate installation
- Watertight and corrosion resistant
Specifications
Standards & Approvals: RoHS Compliant|CSA Standard C22.2 No 18.3|CSA Certified 065178|NEMA FB-1|UL 514B Listed|UL File No. E14814|UL File No. E24264|UL File No. E11853|UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III|NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1)
