3M 7000133675
3M 7000133675 Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Barrel, Yellow
3M 7000133675
3M 7000133675 Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Barrel, YellowIn Stock: 7more info
|
Brand3M
MFG #7000133675
Werner Part #4056293
UPC051128600375
In Stock: 7more info
|
Brand3M
MFG #7000133675
Werner Part #4056293
UPC051128600375
Product Description

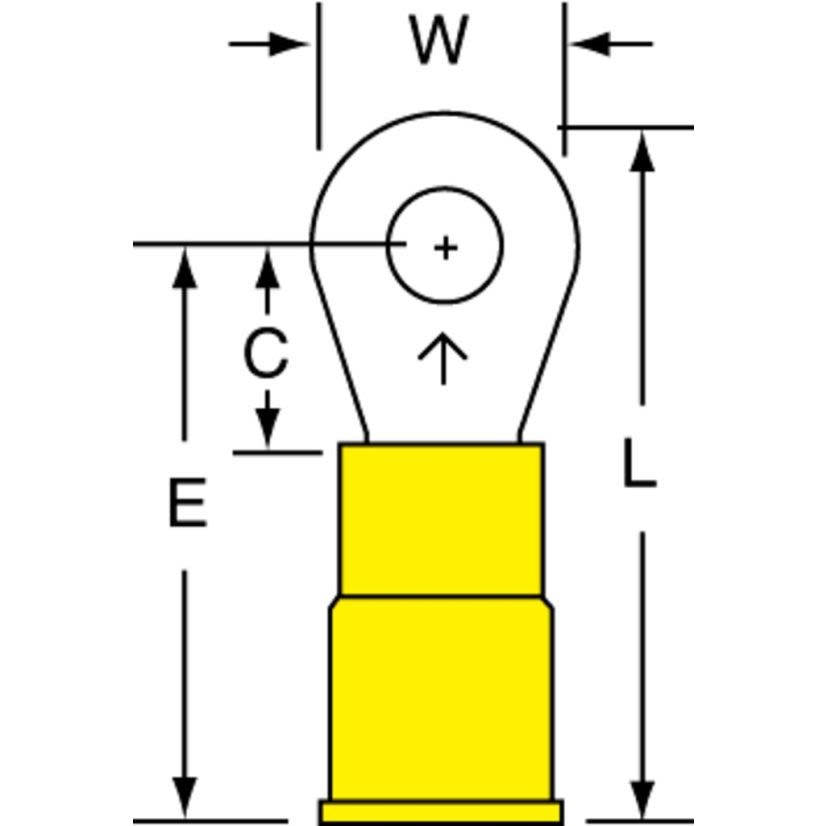

3M, 7000133675, Terminal, Tin Plated Copper Conductor, 12 to 10 AWG Conductor, 8 in Stud, 1.03 in Length, Butted Barrel, 0.135 in ID x 0.25 in L Barrel, 1000 V AC, -40 to 221 deg F, Yellow, 0.38 in W x 0.04 in THK Dimensions
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.135 in ID x 0.25 in L
Barrel TypeButted
ColorYellow
Conductor size12 to 10 AWG
Conductor TypeTin Plated Copper
Country of OriginUS
Dimensions0.38 in W x 0.04 in THK
Manufacturer3M
Stud Size8 in
Temperature Rating-40 to 221 deg F
Type / StyleRing
Voltage Rating1000 V AC
Documents
Features
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Specifications
Standards/Approvals: CSA Certified|RoHS 2011/65/EU|UL Listed
