3M 7000133669
Highland 7000133669 Fully Insulated Male Disconnect, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Electrolytic Copper/Nylon, Red
3M 7000133669
Highland 7000133669 Fully Insulated Male Disconnect, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Electrolytic Copper/Nylon, RedIn Stock: 2more info
|
Brand3M
MFG #7000133669
Werner Part #4072160
UPC051128600269
In Stock: 2more info
|
Brand3M
MFG #7000133669
Werner Part #4072160
UPC051128600269
Product Description
Highland, 7000133669, Male Disconnect, Fully Insulated, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 V AC, Specifications: 0.032 in THK, -40 to 221 deg F, Electrolytic Copper/Nylon, Red, Tin Plated, 0.95 in L x 0.44 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeButted Seam
ColorRed
Conductor size22 to 18 AWG
Conductor TypeCopper
Country of OriginUS

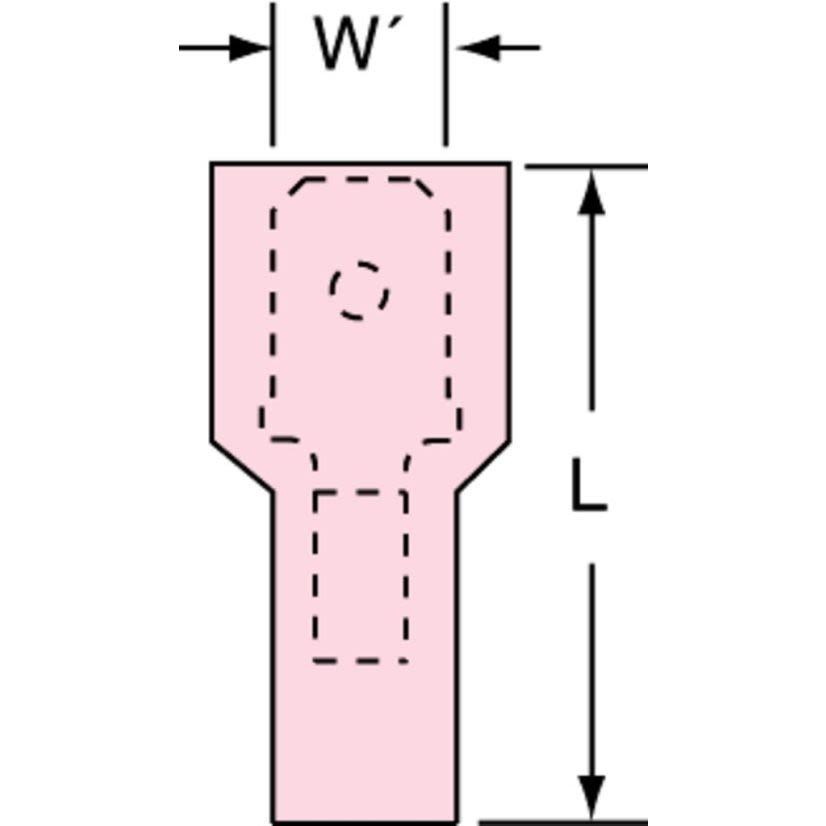

Dimensions0.95 in L x 0.44 in W
FinishTin Plated
Manufacturer3M
MaterialElectrolytic Copper/Nylon
Tab Size1/4 in
Temperature Rating-40 to 221 deg F
Terminal TypeCrimp
TypeFully Insulated
Type / StyleFully Insulated
Voltage Rating600/1000 V AC
Documents
Applications
Fixtures or Luminaires and Signs Applications
Features
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Mates with 0.25 in wide female tab
- This male disconnect terminal offers excellent holding force
- Nlon-insulated, butted-seam barrel offers allows for insertion of wires
- Allows for quick and easy disconnect of wires
Specifications
0.032 in THK
