3M 7000133383
3M 7000133383 Fully Insulated Male Disconnect, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Barrel, ETP/Electrolytic Copper, Yellow
3M 7000133383
3M 7000133383 Fully Insulated Male Disconnect, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Barrel, ETP/Electrolytic Copper, YellowNon-stock product. Available to order - lead time may vary.
Brand3M
MFG #7000133383
Werner Part #3799845
UPC051128588963
Non-stock product. Available to order - lead time may vary.
Brand3M
MFG #7000133383
Werner Part #3799845
UPC051128588963
Product Description

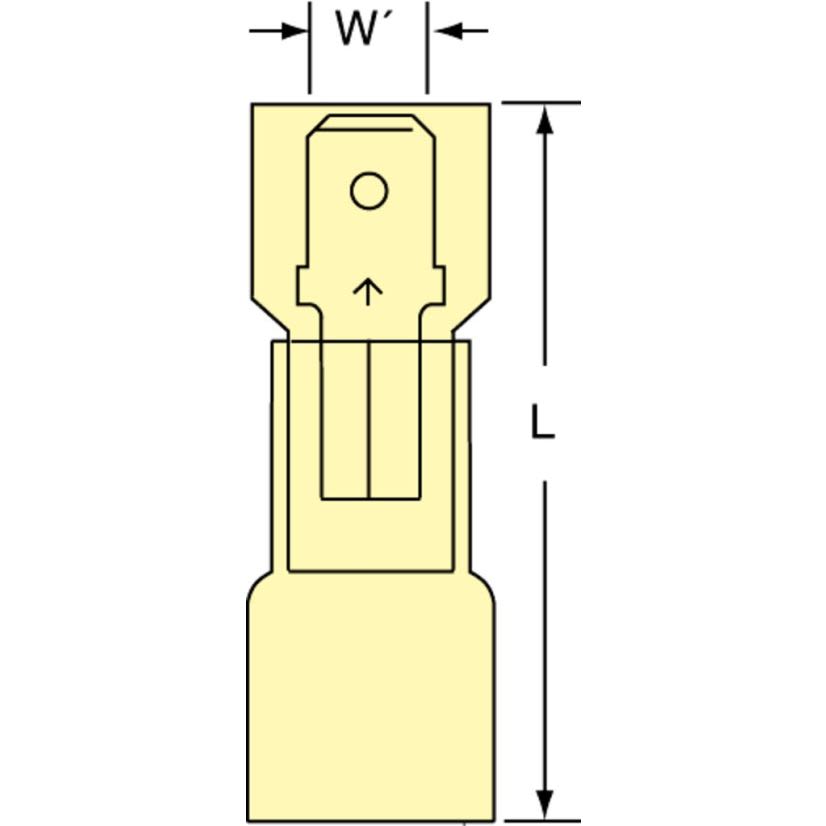

3M, 7000133383, Male Disconnect, Fully Insulated, 12 to 10 AWG Conductor, 1/4 in Tab, Butted Barrel, Specifications: 1.2 in OAL, 221 deg F, ETP/Electrolytic Copper, Yellow, Tin Plated, 0.032 in THK x 0.25 in W Pad Dimensions
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeButted
ColorYellow
Conductor size12 to 10 AWG
Conductor TypeHeat Shrink Copper
Country of OriginUS
Dimensions0.032 in THK x 0.25 in W Pad
FinishTin Plated
Manufacturer3M
MaterialETP/Electrolytic Copper
Tab Size1/4 in
Temperature Rating221 deg F
TypeFully Insulated
Type / StyleDisconnect
Features
- This male disconnect terminal offers excellent holding force
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Mates with 0.25-in wide female tab
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Withstands a maximum temperature of 221 deg F (105 deg C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Specifications
1.2 in OAL
