3M 7000133664

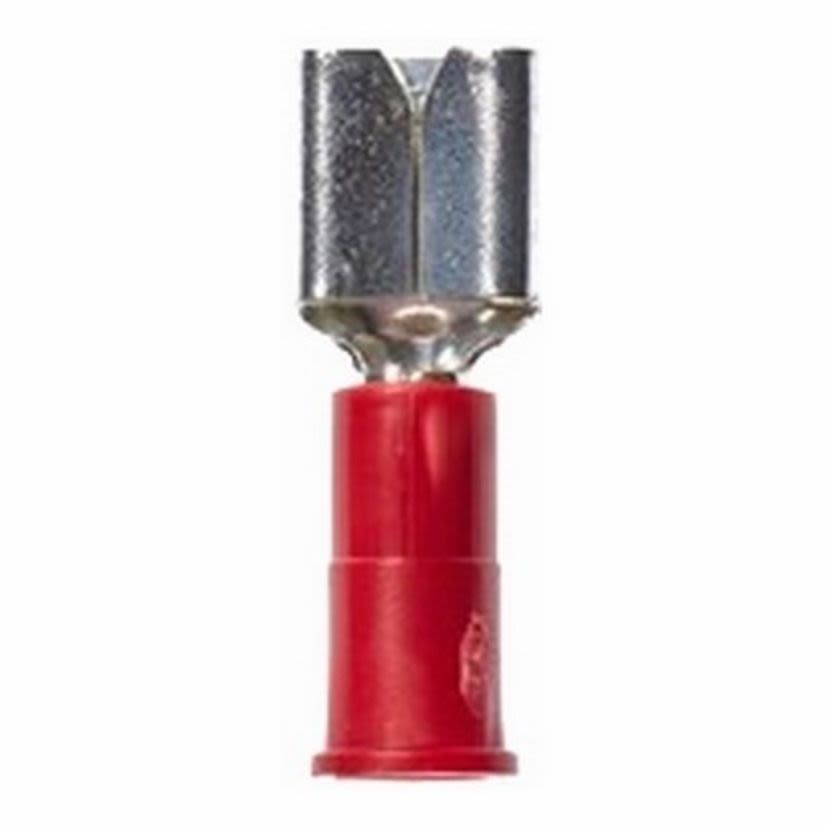

Highland 7000133664 Insulated Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Vinyl, Red, Insulated
3M 7000133664
Highland 7000133664 Insulated Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Vinyl, Red, InsulatedIn Stock: 8more info
|
Brand3M
MFG #7000133664
Werner Part #4058153
UPC051128600085
In Stock: 8more info
|
Brand3M
MFG #7000133664
Werner Part #4058153
UPC051128600085
Product Description
Highland, 7000133664, Disconnect Terminal, Insulated, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 V AC, Specifications: 0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel, -40 to 221 deg F, Vinyl, Red, Tin Plated, 0.87 in L Dimensions, Insulated: Insulated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeButted Seam
ColorRed
Conductor size22 to 18 AWG
Country of OriginUS
Dimensions0.87 in L
FinishTin Plated
InsulatedInsulated
Manufacturer3M
MaterialVinyl
Tab Size0.25 in W x 0.032 in THK
Temperature Rating-40 to 221 deg F
Terminal TypeCrimp
TypeInsulated Standard
Type / StyleSTANDARD
Voltage Rating600/1000 V AC
Documents
Applications
Building Fixtures or Luminaires, Signs and Wire Applications
Features
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- Mates with 1/4 in wide male tab
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
Specifications
0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel
