3M 7000133657

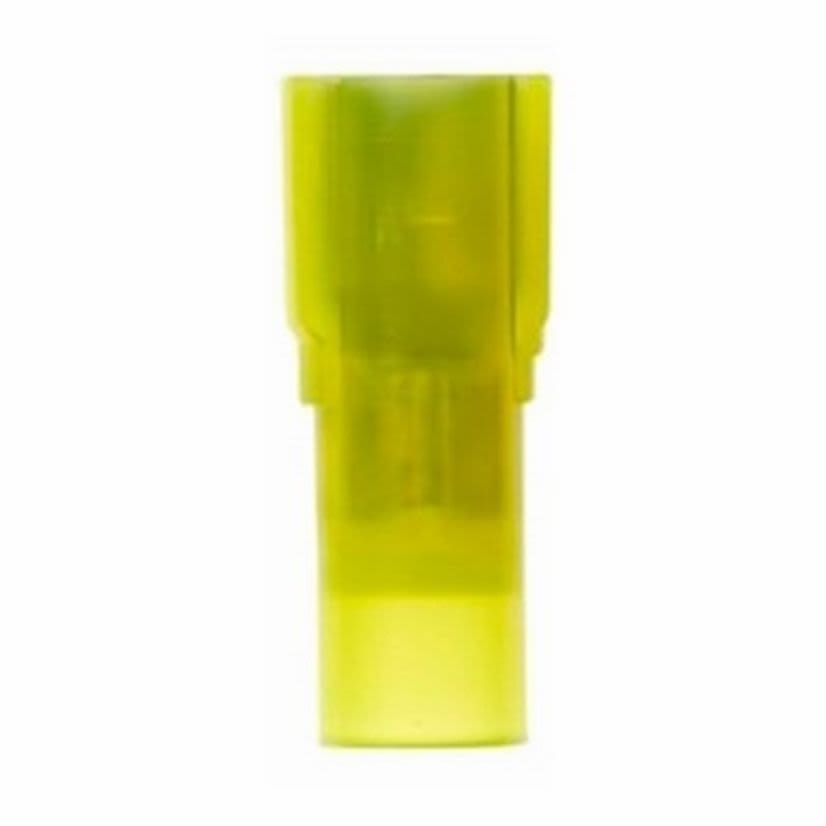

Highland 7000133657 Insulated Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Nylon, Yellow, Fully Insulated
3M 7000133657
Highland 7000133657 Insulated Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Nylon, Yellow, Fully InsulatedIn Stock: 14more info
|
Brand3M
MFG #7000133657
Werner Part #4047827
UPC051128599990
In Stock: 14more info
|
Brand3M
MFG #7000133657
Werner Part #4047827
UPC051128599990
Product Description
Highland, 7000133657, Disconnect Terminal, Insulated, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 V AC, Specifications: 1/4 in Dia Max Insulation, 0.128 in ID x 0.25 in L Barrel, -40 to 221 deg F, Nylon, Yellow, Tin Plated, 0.99 in L Dimensions, Insulated: Fully Insulated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeButted Seam
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
Dimensions0.99 in L
FinishTin Plated
InsulatedFully Insulated
Manufacturer3M
MaterialNylon
Tab Size0.25 in W x 0.032 in THK
Temperature Rating-40 to 221 deg F
Terminal TypeCrimp
TypeFully Insulated
Voltage Rating600/1000 V AC
Documents
Applications
Building Fixtures or Luminaires, Signs and Wire Applications
Features
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
Specifications
1/4 in Dia Max Insulation, 0.128 in ID x 0.25 in L Barrel
