3M 7000133672

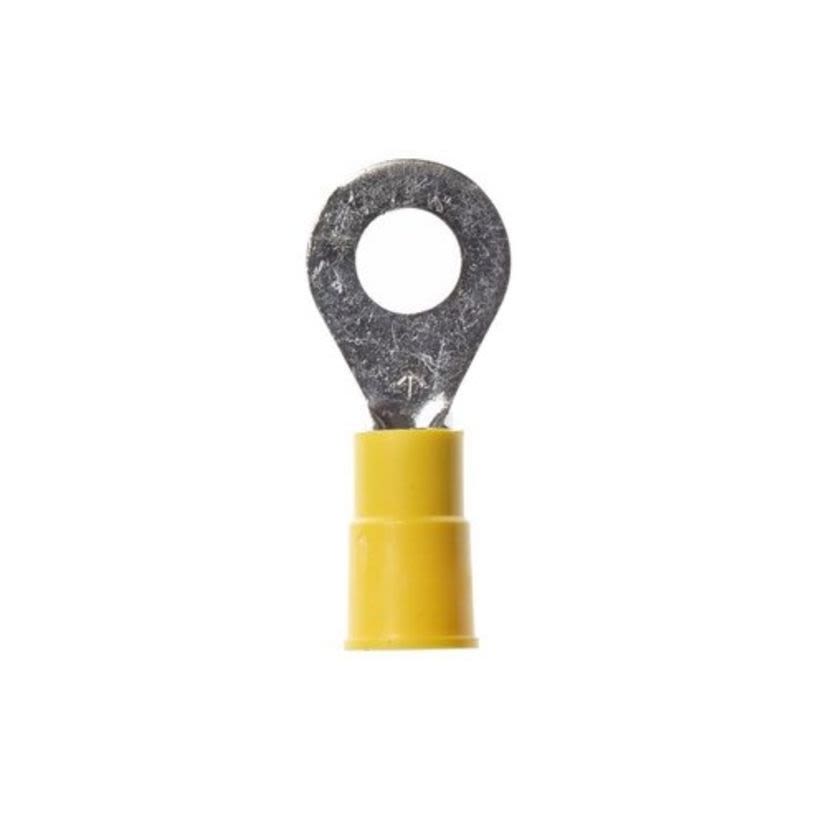

Highland 7000133672 Insulated Terminal, 12 to 10 AWG Conductor, 1.26 in L, Butted Seam Barrel, Vinyl, Yellow
3M 7000133672
Highland 7000133672 Insulated Terminal, 12 to 10 AWG Conductor, 1.26 in L, Butted Seam Barrel, Vinyl, YellowIn Stock: 12more info
|
Brand3M
MFG #7000133672
Werner Part #4058162
UPC051128600337
In Stock: 12more info
|
Brand3M
MFG #7000133672
Werner Part #4058162
UPC051128600337
Product Description
Highland, 7000133672, Terminal, Insulated, 12 to 10 AWG Conductor, 1/4 in Stud, 1.26 in Length, Butted Seam Barrel, 0.135 in ID x 0.25 in L Barrel, Ring Tongue, 0.53 in W x 0.04 in THK Tongue, 600/1000 V AC, Specifications: 1/4 in Dia Max Insulation, 0.44 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.135 in ID x 0.25 in L
Barrel TypeButted Seam
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
FinishTin Plated
Manufacturer3M
MaterialVinyl
Stud Size1/4 in
Temperature Rating-40 to 221 deg F
Tongue Size0.53 in W x 0.04 in THK
Tongue TypeRing
TypeInsulated Standard
Type / StyleInsulated Standard
Voltage Rating600/1000 V AC
Documents
Applications
Building Fixtures or Luminaires, Signs and Wire Applications
Features
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
Specifications
1/4 in Dia Max Insulation, 0.44 in Clearance
