TE Connectivity TFT-152R-SG

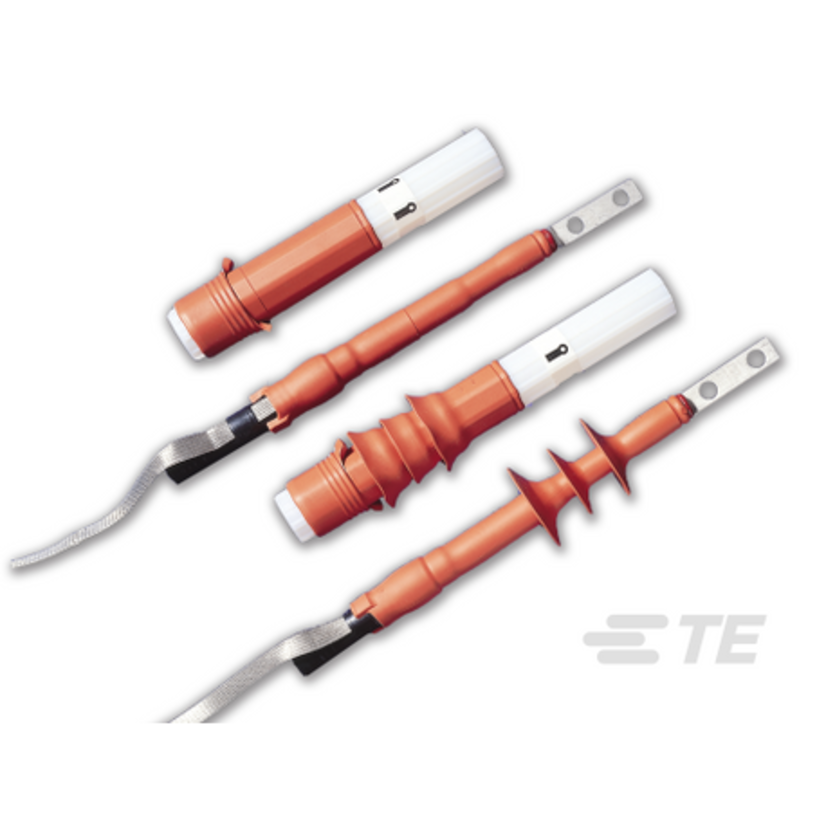

TE Connectivity TFT-152R-SG Cold Applied TE Connectivityrmination Kit, 15 kV, 0.53 to 0.81 in Cable, 4/0 AWG to 500 kcmil Conductor, Plastic
TE Connectivity TFT-152R-SG
TE Connectivity TFT-152R-SG Cold Applied TE Connectivityrmination Kit, 15 kV, 0.53 to 0.81 in Cable, 4/0 AWG to 500 kcmil Conductor, PlasticNon-stock product. Available to order - lead time may vary.
BrandTE Connectivity
MFG #TFT-152R-SG
Werner Part #1684100
UPC715629512000
Non-stock product. Available to order - lead time may vary.
BrandTE Connectivity
MFG #TFT-152R-SG
Werner Part #1684100
UPC715629512000
Product Description
TE Connectivity TE Connectivityrmination Kit, Cold Applied, Series: TFT, 15 kV, Shielded Cable, 0.53 to 0.81 in Cable Dia, 4/0 AWG to 500 kcmil Conductor, 0.85 to 1.45 in, Plastic, Red
Attributes
Documents
Applications
Features
Included
Attributes
ColorRed
Conductor size4/0 AWG to 500 kcmil
Country of OriginMX
ManufacturerTE Connectivity
MaterialPlastic
Package Weight1.33 lb
SeriesTFT
TypeCold Applied
Voltage Rating15 kV
Documents
Applications
For copper tape, wire shield, lead sheath and UniShield cables, indoor/outdoor applications
Features
- Provides maintenance free, long life even in highly contaminated areas
- Material does not degrade in outdoor applications, outstanding UV stability
- Crush resistant core prevents collapsing due to rough handling
- Seals out all moisture and contamination
- Provides easier installation in confined spaces
- Outstanding UV stability
- 11.5 in L insulation
- 3-sheds per phase
Included
(1) Silicone Housing on Holdout, (1) Stress Control Patch, (1) Roll Spring, (1) Solder Blocked Ground Braid, (2) Adhesive Backed Copper Tape Strips, (1) Cloth Tape, Sealant Tape Strips and (1) Installation Instruction
