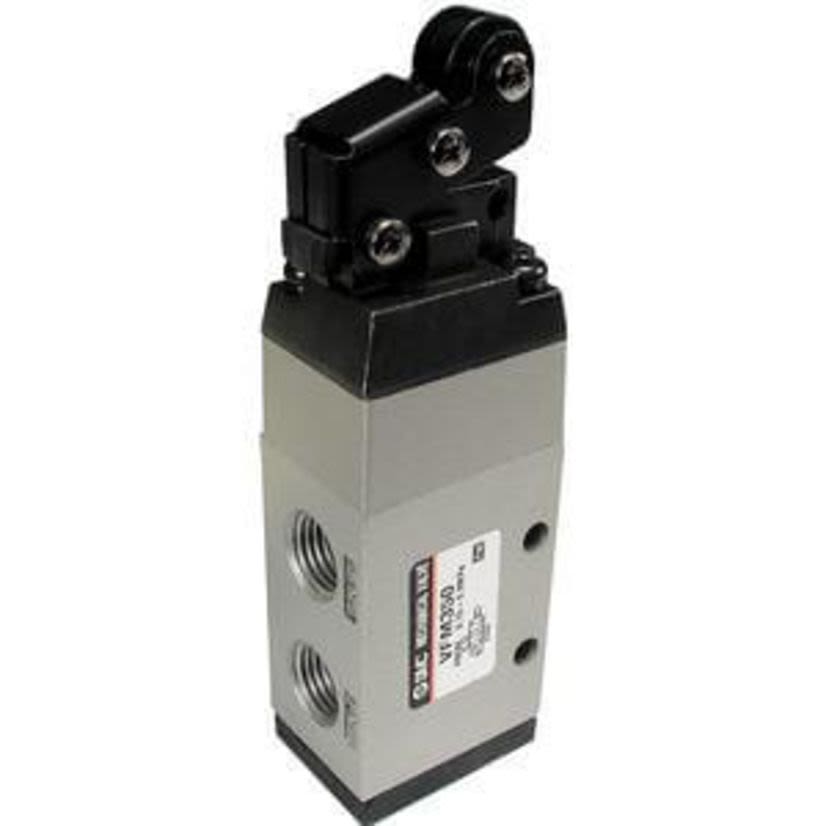

SMC VFM350-02-34B
SMC VFM350-02-34B VFM300 Internal Pilot Mechanical Valve, 1/4 in Nominal, BSPT End Style, 0.15 to 0.9 MPa Pressure, 1 Cv Flow Rate, 4 Ways, 2 Positions
SMC VFM350-02-34B
SMC VFM350-02-34B VFM300 Internal Pilot Mechanical Valve, 1/4 in Nominal, BSPT End Style, 0.15 to 0.9 MPa Pressure, 1 Cv Flow Rate, 4 Ways, 2 PositionsNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
SMC, VFM350-02-34B, Mechanical Valve, Internal Pilot, Series: VFM300, 1/4 in Nominal, BSPT End Style, 0.15 to 0.9 MPa Pressure, -5 to 60 deg C, 1 Cv Flow Rate, 4 Ways, 2 Positions, Media: Air/Inert Gas, Twist Selector Actuator, Aluminum Body, Nitrile Softgoods, 39 mm H x 40 mm W x 140.2 mm L Dimensions
Attributes
Documents
Features
Attributes
Body MaterialAluminum
Country of OriginJP
End StyleBSPT
Flow Rate1 Cv
Height147.9 mm
Length40 mm
ManufacturerSMC Corporation of America
Nominal Size1/4 in
Pressure Rating0.15 to 0.9 MPa
SeriesVFM300
Temperature Rating-5 to 60 deg C
Type / Style5 Port Mechanical Valve - Rubber Seal
Weight308 g
Width40 mm
Documents
Features
- Fluid, air, inert gas
- Operating pressure range 0.15 to 0.9MPa
- Effective area (Cv) 18mm sq (1.0)
- Maximum frequency (mechanical operation style) 300 c.p.m. or less
