SMC NCDGBN25-0100

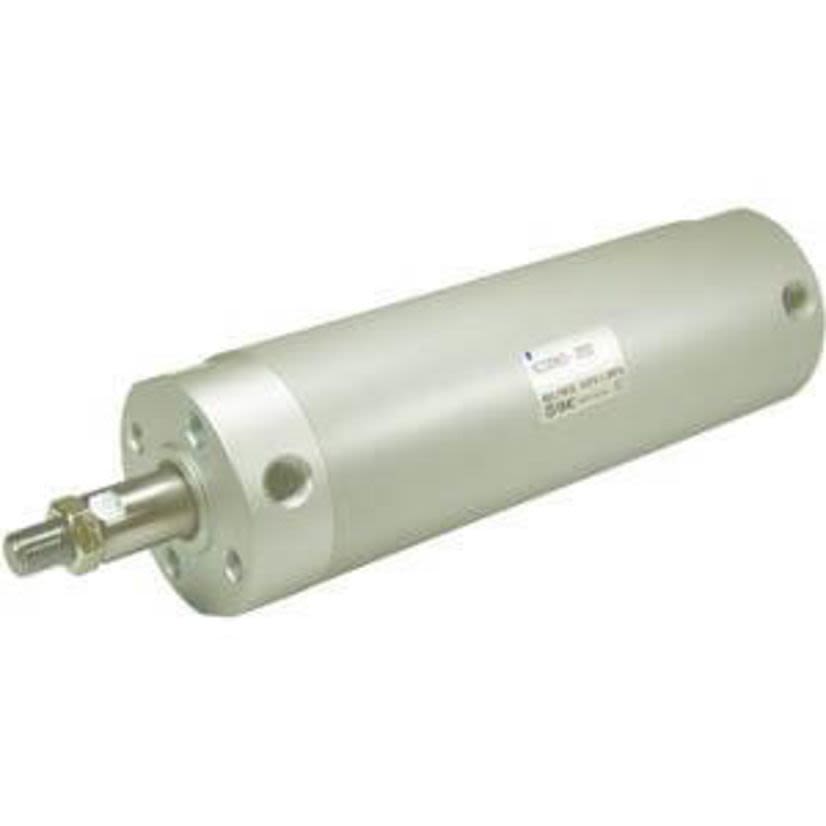

SMC NCDGBN25-0100 NCG, 25 mm Cylinder Bore, 1 in L Stroke, Double Acting Cylinder Action, Foot Mounting
SMC NCDGBN25-0100
SMC NCDGBN25-0100 NCG, 25 mm Cylinder Bore, 1 in L Stroke, Double Acting Cylinder Action, Foot MountingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
SMC, NCDGBN25-0100, Repairable, Series: NCG, 25 mm Cylinder Bore, 1 in Stroke Length, Double Acting Cylinder Action, 1/8 in NPT Port, 5/16-24 Male UNF Rod Thread, 145 psi Pressure, 14 to 140 deg F, Rubber Cushion, Foot Mounting, Aluminum, Anodized, 5.05 in L x 1.02 in W Dimensions
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
Height30.99 mm
Length124.97 mm
ManufacturerSMC Corporation of America
MaterialAluminum
Port Size1/8 in NPT
Pressure Rating145 psi
SeriesNCG
Temperature Rating14 to 140 deg F
Type / StyleNcg Cylinder
Weight0.24 kg
Width30.99 mm
Documents
Applications
For available in 11 standard options to help fit into many different applications
Features
- Double acting single rod
- Strokes from 1in through 12in
- Mounts are basic, foot, flange, clevis, or trunnion
- Variety of switches and a variety of lead wire lengths
