SMC AN15-02

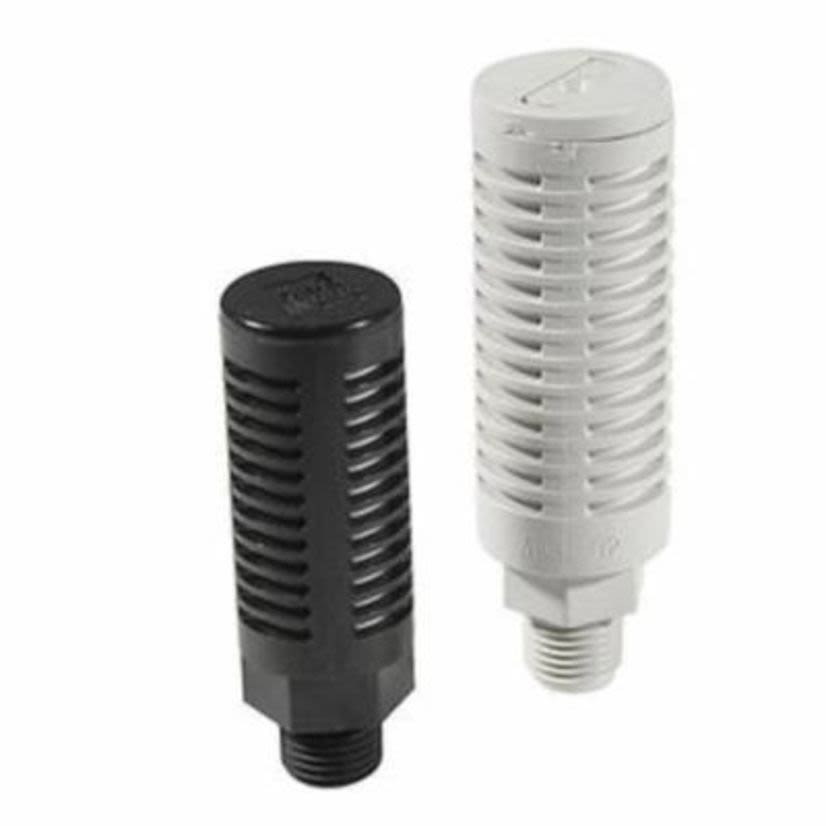

SMC AN15-02 Pneumatic Silencer, 1/4 in Port, 1.0 mpa Pressure Rating, 41 to 140 deg F, 16 mm Dia x 32 mm L OAL
SMC AN15-02
SMC AN15-02 Pneumatic Silencer, 1/4 in Port, 1.0 mpa Pressure Rating, 41 to 140 deg F, 16 mm Dia x 32 mm L OALNon-stock product. Available to order - lead time may vary.
BrandSMC
MFG #AN15-02
Werner Part #3946788
UPC713049010632
Non-stock product. Available to order - lead time may vary.
BrandSMC
MFG #AN15-02
Werner Part #3946788
UPC713049010632
Product Description
SMC Pneumatic Silencer, Series: AN, 1/4 in, 1.0 mpa, 41 to 140 deg F, 16 mm Dia x 32 mm L Overall Length, Resin
Attributes
Documents
Features
Attributes
Height13.97 mm
Length35.56 mm
ManufacturerSMC Corporation of America
MaterialResin
Overall Length16 mm Dia x 32 mm L
Package Weight0.01 lb
Port Size1/4 in
Pressure Rating1.0 mpa
SeriesAN
Temperature Rating41 to 140 deg F
Type / StyleSilencer With 1/4" Thread Port
Weight2.268 g
Width13.97 mm
Features
- Series AN silencers offer various styles and low backpressure in a compact, easy mounting design
- The noise reduction has been improved to 30 dB(A) and the case is UL94-V0 grade, flame resistant material
- Compressed air fluid
- 1 MPa maximum operating pressure
- 15 sq-mm effective area
- 1 cu-m/min or less recommended flow
- 1/4 R (PT) thread type
