nVent HOFFMAN VHD26

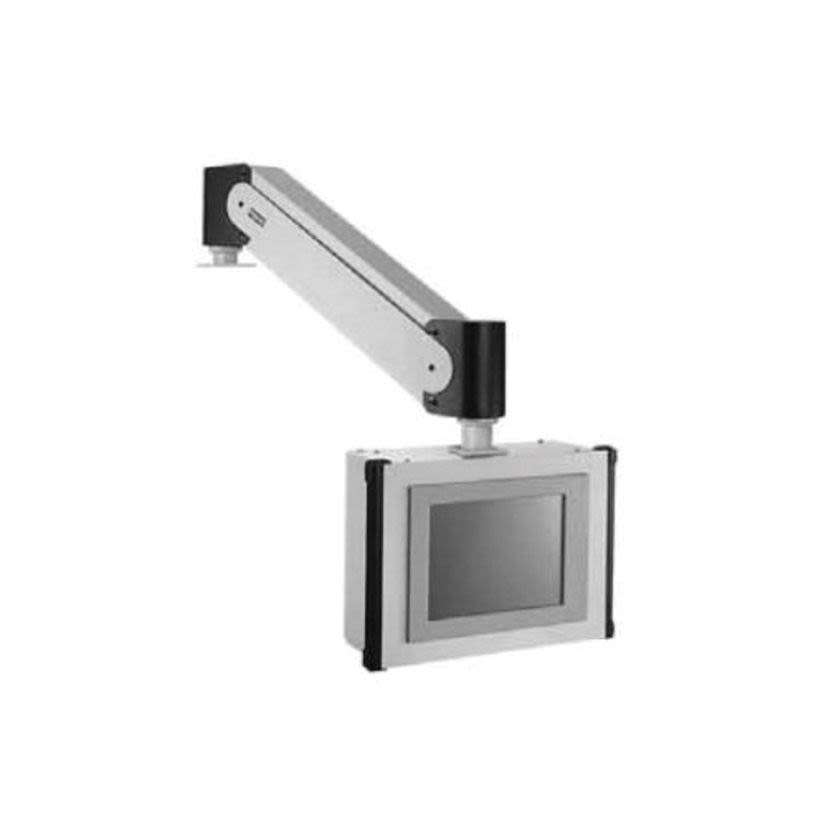

Hoffman SYSPEND VHD26 VM2 Type 4 Heavy Duty Machine Top Mount VHD Motion Arm, For Use With SYSPEND HMI Enclosures, 45 to 125 lb Load Capacity, Steel, Light Gray
nVent HOFFMAN VHD26
Hoffman SYSPEND VHD26 VM2 Type 4 Heavy Duty Machine Top Mount VHD Motion Arm, For Use With SYSPEND HMI Enclosures, 45 to 125 lb Load Capacity, Steel, Light GrayNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #VHD26
Werner Part #3831391
UPC783510185121
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #VHD26
Werner Part #3831391
UPC783510185121
Product Description
Hoffman SYSPEND VHD Motion Arm, Type 4 Heavy Duty Machine Top Mount, Series: VM2, For Use With: SYSPEND HMI Enclosures, Specifications: 45 to 125 lb Load Capacity, Steel, Light Gray, 10.18 in H x 30.65 in W x 4.86 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
ColorLight Gray
Country of OriginUS
Dimensions10.18 in H x 30.65 in W x 4.86 in D
ManufacturernVent
MaterialSteel
Package TypePIECE
SeriesVM2
Suitable For Use WithSYSPEND HMI Enclosures
TypeType 4 Heavy Duty Machine Top Mount
Type / StyleType 4 Heavy Duty Machine Top Mount
Documents
Applications
For effortlessly lifts, lowers and repositions HMI enclosures in NEMA 4 and 12 environments
Warranty
60 Days
Features
- 26 in arm supports loads of 45-125 lb with 13 in of vertical height adjustment
- Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
- Angle of gas springs is adjustable (not the pressure), allows lifting force to be increased or decreased at any time for changes in load
- Tension adjustment at front of the arm provides additional fine-tuning of lifting force
- Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
- 1.3 in internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
- Gasketed mounting surfaces at both ends of arm maintain seal integrity
- Enclosure and arm can be swiveled 330 deg with swivel stops available in 30 deg increments
- Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
Specifications
45 to 125 lb Load Capacity
