nVent HOFFMAN T703626G150

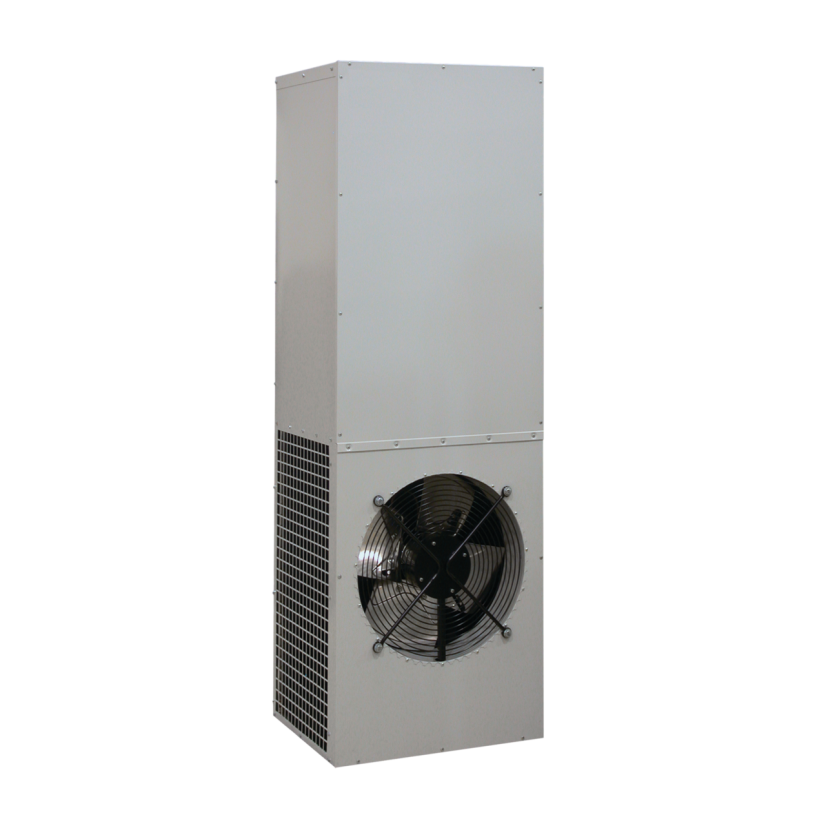

nVent HOFFMAN T703626G150 MCL Sealed Enclosure Air Conditioner, 200 to 250 V AC, 36 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 43000 Btu/hr
nVent HOFFMAN T703626G150
nVent HOFFMAN T703626G150 MCL Sealed Enclosure Air Conditioner, 200 to 250 V AC, 36 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 43000 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #T703626G150
Werner Part #3953852
UPC783510234072
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #T703626G150
Werner Part #3953852
UPC783510234072
Product Description
nVent HOFFMAN Sealed Enclosure Air Conditioner, Series: MCL, 200 to 250 V AC, 36 A, 12602 W Power, 50/60 Hz Frequency, 43000 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, Mechanical Thermostat Control, Terminal Block Connection, -40 to 131 deg F, Side Mounting, Sheet Metal, Gray, 2 x 2 x 2 in Dimensions
Attributes
Documents
Applications
Included
Features
Attributes
Amps36 A
BABA CompliantYes
CapacityRange: 43000 Btu/hr
Capacity Range43000 Btu/hr
ColorGray
Connection TypeTerminal Block
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions2 x 2 x 2 in
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialSheet Metal
Mounting TypeSide
Power Rating12602 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type / StyleSealed Enclosure
Voltage200 to 250 VAC
Voltage Rating200 to 250 V AC
Documents
Applications
Industrial Automation, Telecommunications Equipment, Package Handling Equipment, Security and Defense System Applications
Included
Mounting Hardware, Gasket, User Manual, Thermostat, Malfunction Switch, Compressor Heater, Head Pressure Control, Enclosure Heater and Corrosion Resistant Components
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R-407C refrigerant
- Models for 230 and 460 VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal cover for rugged factory and outdoor environments
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
