nVent HOFFMAN Q6PBPCD

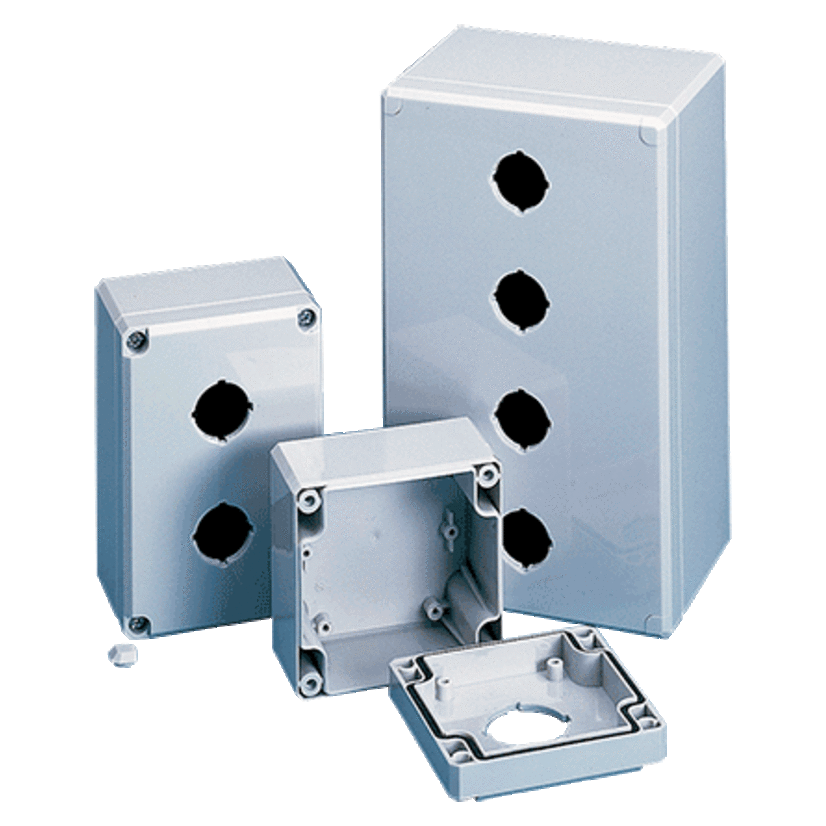

nVent HOFFMAN QLINE Q6PBPCD Q41 D Pushbutton Enclosure, 233 mm L x 153 mm W, 6 Outlets, NEMA 4X/IP67 NEMA Rating, Polycarbonate
nVent HOFFMAN Q6PBPCD
nVent HOFFMAN QLINE Q6PBPCD Q41 D Pushbutton Enclosure, 233 mm L x 153 mm W, 6 Outlets, NEMA 4X/IP67 NEMA Rating, PolycarbonateNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent HOFFMAN QLINE D Pushbutton Enclosure, Series: Q41, 233 mm Length, 153 mm Width, NEMA 4X/IP67, Screw Cover, 5.83 in W x 8.31 in H Panel, 6 Outlets, Wall Mount, Polycarbonate, Light Gray
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorLight Gray
Country of OriginEE
Cover TypeScrew
Hole Size30.5 mm
ManufacturernVent
MaterialPolycarbonate
Mounting TypeWall
NEMA RatingNEMA 4X/IP67
Number of Outlets6
Package TypePIECE
Panel Size5.83 in W x 8.31 in H
SeriesQ41
Type / StyleQLINE? D Pushbutton, Type 4X
Documents
Applications
For insulating and housing 30.5 mm or 22.5 mm pushbuttons in hostile environments
Features
- High-impact polycarbonate material is used for both body and cover
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails or other components
- Seamless foam-in-place gasket assures watertight and dust-tight seal
- Optional panels are unpainted plated steel
Specifications
Number of Outlets: 6
Warranty
1 Year
