nVent HOFFMAN PRA197TP

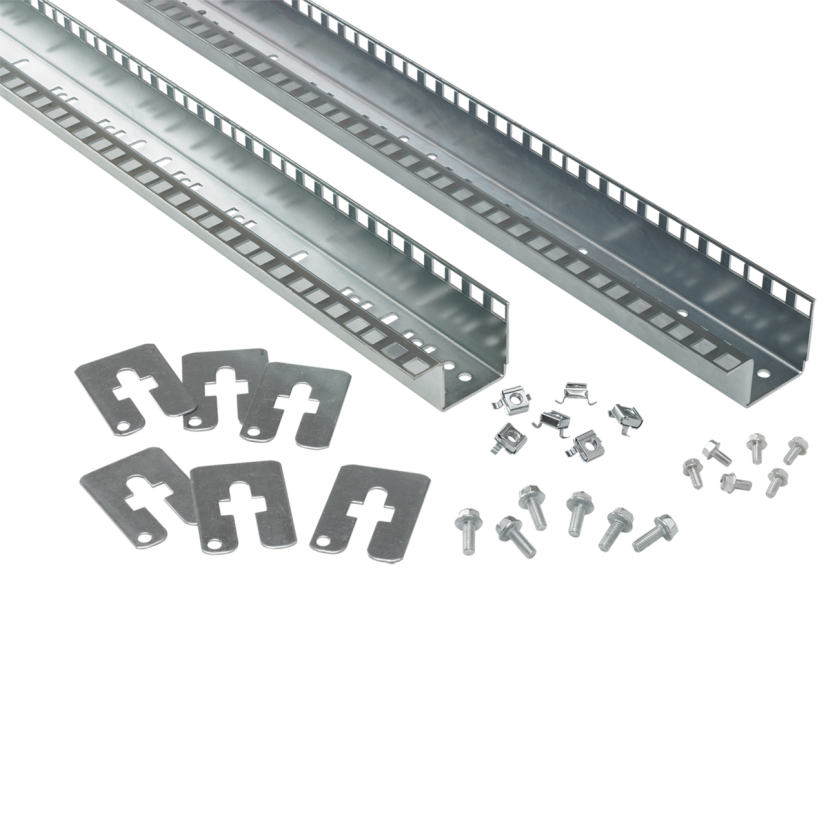

Hoffman PRA197TP P20 Tapped Hole U-Shaped Rack Angle, For Use With ProLine 700 mm Enclosure Frames, 19 in Rack, 13-Rack Unit, 14 ga Steel
nVent HOFFMAN PRA197TP
Hoffman PRA197TP P20 Tapped Hole U-Shaped Rack Angle, For Use With ProLine 700 mm Enclosure Frames, 19 in Rack, 13-Rack Unit, 14 ga SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PRA197TP
Werner Part #37894
UPC783510649500
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PRA197TP
Werner Part #37894
UPC783510649500
Product Description
Hoffman Rack Angle, Tapped Hole U-Shaped, Series: P20, For Use With: ProLine 700 mm Enclosure Frames, Specifications: 19 in Rack, 13-Rack Unit, 14 ga Steel, Zinc Plated, 22.77 in H Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions22.77 in H
FinishZinc Plated
ManufacturernVent
Material14 ga Steel
Package Height4.75 in
Package Length29.25 in
Package TypeEACH
Package Volume760.32 cu-in
Package Weight7.4 lb
Package Width5.5 in
SeriesP20
Suitable For Use WithProLine 700 mm Enclosure Frames
TypeTapped Hole U-Shaped
Type / StyleTapped Hole U-Shaped
Documents
Warranty
Limited
Features
- Furnished in pairs
- Tapped-Hole Rack Angles are constructed from 12 ga conductive steel, while Square-Hole Rack Angles are 14 ga conductive steel; U-shaped, channel construction
- Tapped-Hole Rack Angles have 10-32 threaded holes; Square-Hole Rack Angles are designed to accept metric or English cage nuts
- Comply with ANSI/EIA RS-310-D rack mounting standards
- Rack Angles fit directly into 600-mm wide frames; other widths require Frame Reducing Brackets or Adjustable Rack-Mounting Rails (sold separately)
Specifications
19 in Rack, 13-Rack Unit
