nVent HOFFMAN P2PSM208

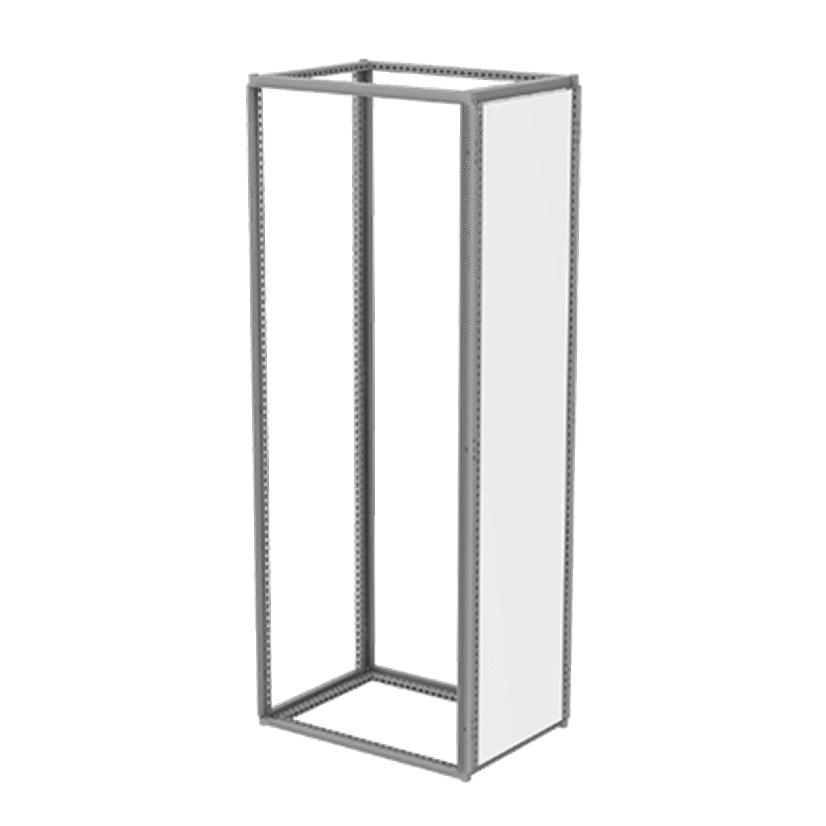

nVent HOFFMAN P2PSM208 ProLine™ G2 Full Side-Mounting Subpanel, 2000x800, White
nVent HOFFMAN P2PSM208
nVent HOFFMAN P2PSM208 ProLine™ G2 Full Side-Mounting Subpanel, 2000x800, WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
The ProLine G2 Subpanel is part of the new patent pending EZ-Load Mounting System which was designed to maximize space utilization and to make loading the subpanel faster and safer by providing a variety of loading options. The EZ-Load Glide Blocks can be used to load a subpanel vertically from the front, rear or side. Additionally, they can be used to load the subpanel horizontallyùa new method for a more controlled option to load a subpanel into a modular enclosure.
Attributes
Documents
Features
Attributes
ColorWhite
Country of OriginMexico
FinishPolyester Powder Coated
GTIN783510325848
Hoffman On DemandHoffman On Demand Product
ManufacturernVent
MaterialSteel
SeriesP40
Size75.9 in H
Suitable For Use With2000 mm H x 800 mm W Frames
TypeSide Mount
Documents
Features
Accommodates five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)High space efficiency ratio (HxW of subpanel)/(HxW of frame) of 84 percent Mounting subpanel is securely fastened at the top and bottom of the enclosure; subpanels less than 1200mm wide include four sets of EZ-Load Glide Blocks, four BV-M6 fasteners (block to frame) and four M12 Hex Bolts (subpanel to block); Subpanels 1200mm an Subpanels greater than 1000mm wide are 10 gauge (3.0 mm) mild steel, while subpanels 100mm or narrower are 12 gauge (2.5mm); conductive or white painted finish available Subpanels can be mounted at any depth in 25-mm increments (front to back); accommodates back-to-back and fully recessed rear positions Side-mount panels must be used for the sides of the enclosure; they can be installed on the interior sides of frames Optional panel support bracket available for applications requiring more support in the center of the subpanel; this is required if the enclosure will be tipped in transit or if the panel is not located at the bottom of the enclosure on the glide blocks Panels can be installed in the rearmost position, or positioned so joined enclosures provide a continuous mounting surface without requiring joining panels High space efficiency ratio (HxW of subpanel)/(HxW of frame) of 84 percent Side-mount panels must be used for the sides of the enclosure; they can be installed on the interior sides of frames
